1614 images found




SG 1" 1x0 Al

SG 1" 1x0 Al

Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

Hose assembly TW 63 with SFX 63

Hose assembly TW 63 with SFX 63

TW hose with helix, 'TW' flange with hose tail and Spannfix clamps of aluminium

Solvent filling with integrated vapour recovery in the nozzle

Solvent filling with integrated vapour recovery in the nozzle

ZVA 25 GR, UTS hose assemblies

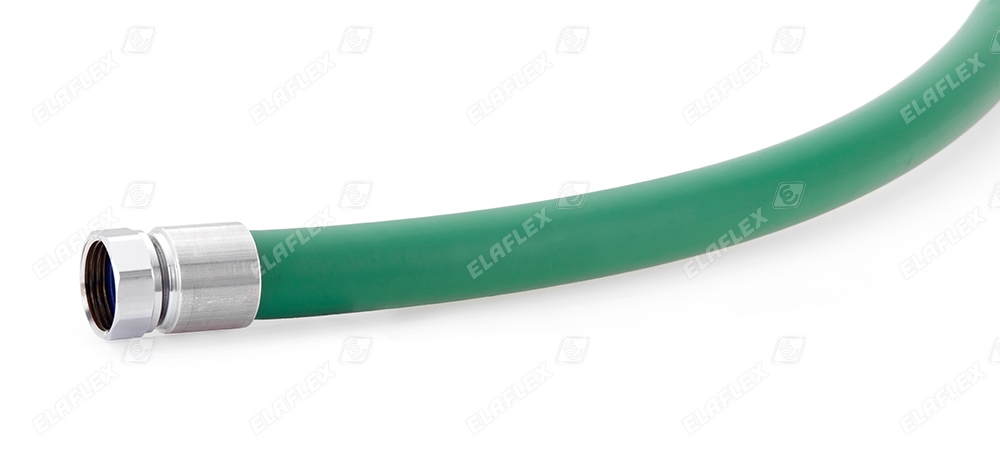

Slimline 16 green

Slimline 16 green

Quality dispensing hose for the forecourt

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

FHD 50 special type HIFR

FHD 50 special type HIFR

(helicopter in flight refuelling)

FF-St 80 SSE

FF-St 80 SSE

Fixed flange hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

ZVF 50 UL 91 / green

ZVF 50 UL 91 / green

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.

Oval flange seal FD 650-3 of ELAPAC 3 mm

Oval flange seal FD 650-3 of ELAPAC 3 mm

Drum unloading chemical industry

Drum unloading chemical industry

UTS hose assemblies with Easyloc cam locking couplings

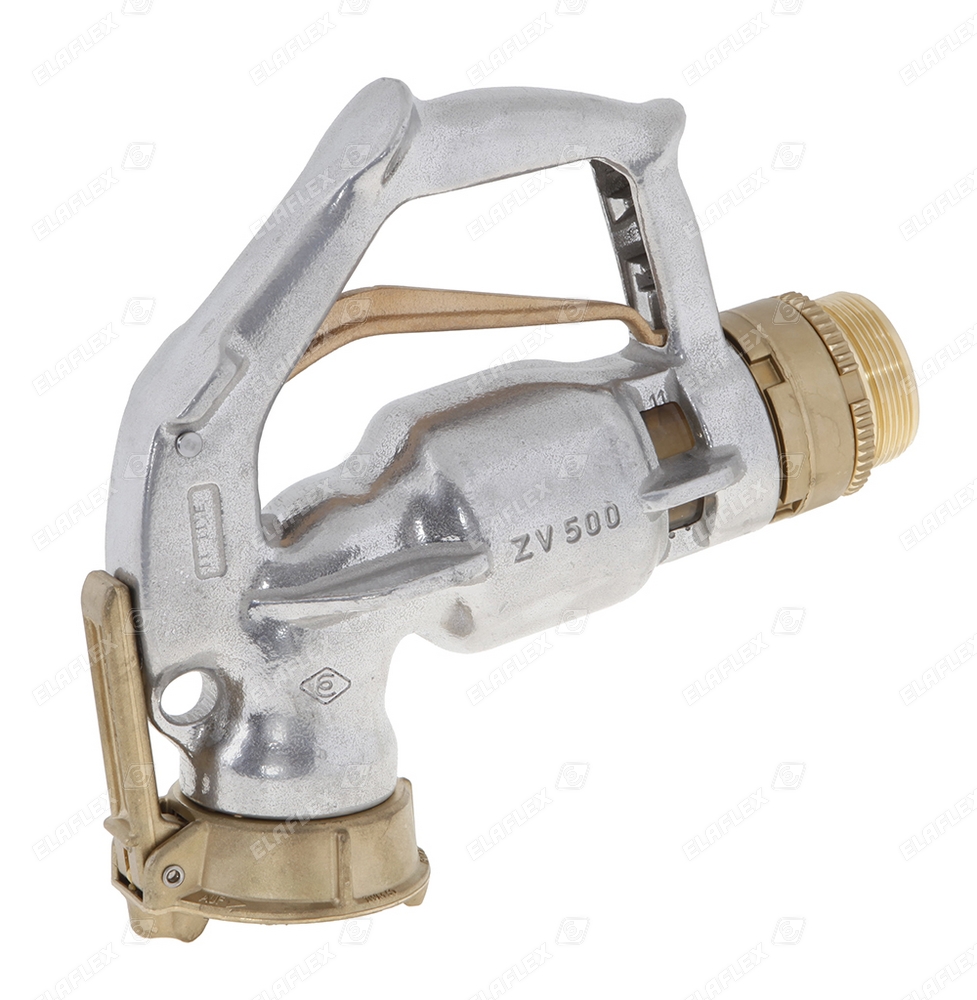

Road tanker reel with HD 50 hose assembly, ZV 500 nozzle

Road tanker reel with HD 50 hose assembly, ZV 500 nozzle

SG 1½" Al

SG 1½" Al

Ssight glass for ZVA 32 nozzles, e.g. for aviation refuelling.

SFC 38 SSE

SFC 38 SSE

Swiveling flange hose coupling with Spannfix clamps. Material: stainless steel with universally resistant PFA coating (red)

VK 80-2" AG Ms

VK 80-2" AG Ms

TW male coupling brass, with reduced male BSP connection (special type)

FWS composite hoses / hose assemblies

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

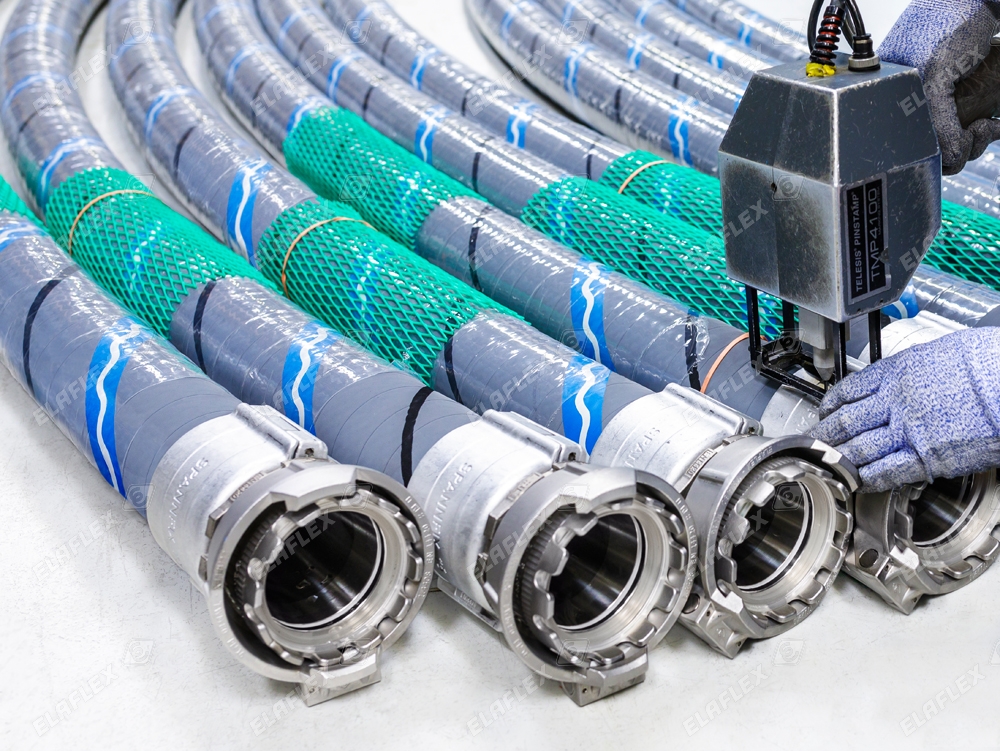

Elaflex Hamburg, marking tested hose assemblies

Elaflex Hamburg, marking tested hose assemblies

Polypal Clean, MX 50 SS

DDC-V Dry Disconnect Couplings for various media

DDC-V Dry Disconnect Couplings for various media

tank storage; TW hose assembly

Underwing refuelling, HD-C

Underwing refuelling, HD-C

Elaflex Hiby Tanktechnik, Production Plettenberg / Germany

Elaflex Hiby Tanktechnik, Production Plettenberg / Germany

Manufacturing of turned parts

Combat tank field refuelling

Combat tank field refuelling

XHD hose, UK

Slimline 21 green

Slimline 21 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Elaflex Hamburg

Elaflex Hamburg

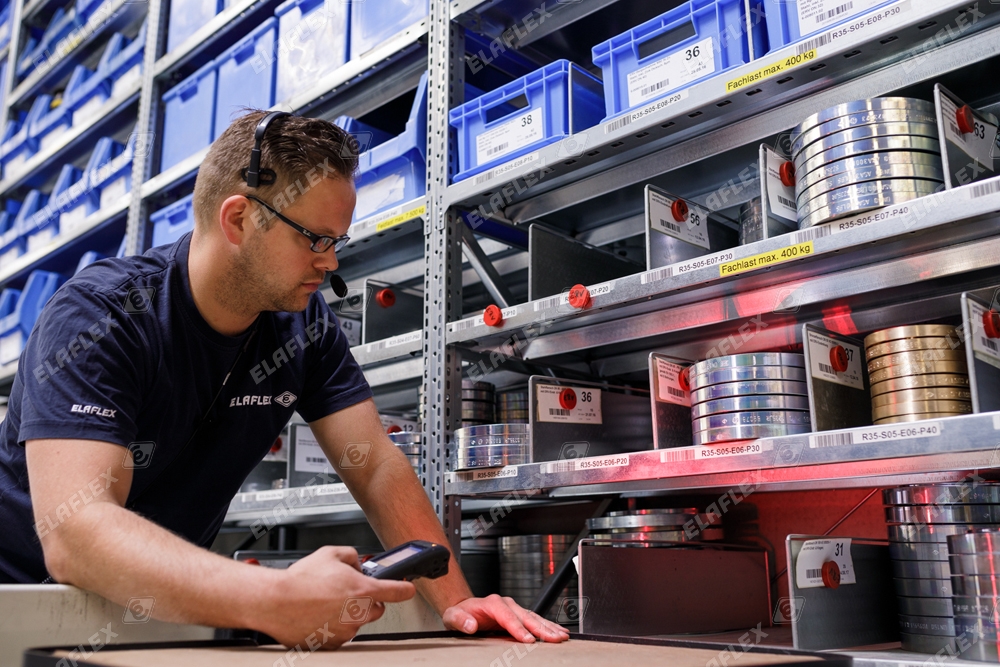

Stock special flanges, pick by voice

Elaflex Hamburg

Elaflex Hamburg

Assembling Spannfix hose clamps

ContiTech Production ERV

ContiTech Production ERV

manufacturing the blank

Slimline 21 blue

Slimline 21 blue

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

Elaflex Hamburg

Elaflex Hamburg

Hose assemblies, pressure test (hydrostatic test)

Type PCS 38 (Polypal Clean DN 38 mm)

Type PCS 38 (Polypal Clean DN 38 mm)

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies

ERV-R 100.16

ERV-R 100.16

RED BAND Rubber Expansion Joint for water, drinking water (DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature range - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

Production MannTek, Sweden

Production MannTek, Sweden
