Section 4: Rubber Expansion Joints
Table of content: ERV Rubber Expansion Joints, Page 401
Order Number Breakdown, Page 402 + 403
Checklist for Expansion Joints, Page 404

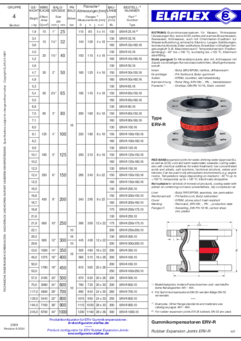

RED BAND Expansion Joints, Page 407-408
- Type ERV-R
for water, drinking water (approval ELL as well as ACS), cold and warm waste water, sea water, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones.
Temperature range -40°C up to +100°C.
Révision: 09.2024
ROTEX Expansion Joints, Page 411-412
- Type ROTEX
for permanent stress through hot heating water, cooling water and hot air. Approved according to DIN up to 100°C by 10 bar and up to 110°C by 6 bar.
Temperature range -40°C u pt o +130°C.
Révision: 08.2024

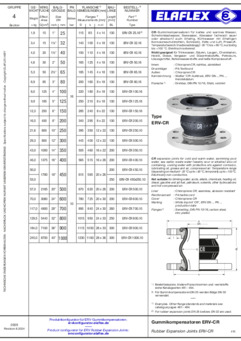

CR Expansion Joints, Page 415-416
- Type ERV-CR
for cold and warm water, swimming pool water, sea water, waste water (weakly sour or alkaline) also oil containing, cooling water with protective oils against corrosion, lubricating oil, grease and air, compressed air.
Temperature -25°C up to +90°C.
Révision: 08.2024
BR Expansion Joints, Page 417-418
- Type ERV-BR
special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks).
Temperature (depending on medium) - 50° C up to + 70° C, temporarily up to + 90° C.
Révision: 08.2024

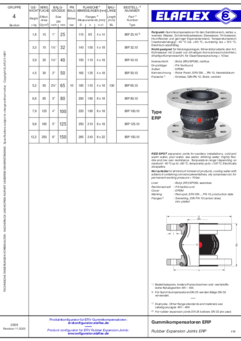

RED SPOT Expansion Joints, Page 419-420
- Type ERP
for cold and warm water, pool water, sea water, drinking water.
Temperature range -40°C up to+90°C.
Révision: 08.2024

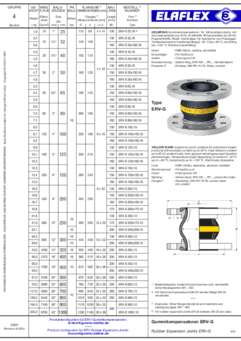

YELLOW BAND Expansion Joints, Page 423-424
- Type ERV-G
for petroleum based products, fuel ethanol blend and DIN EN fuels, also town gas and natural gas, except for LP-gas.
Temperature range -20°C up to +90°C.
Révision: 08.2024
YELLOW STEEL Expansion Joints, Page 427-428
- Type ERV-GS
for petroleum based products, DIN EN fuels, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater.
Temperature range -20°C up to +90°C. Fire resistant up to 30min. and 800°C.
Révision: 08.2024
YELLOW STEEL HNBR Expansion Joints, Page 431-432
- Type ERV-GS HNBR
for petroleum based products, DIN EN fuels, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Very good aging and resistance.
Temperature range -35°C up to +100°C.
Révision: 08.2024
YELLOW BAND LT Expansion Joints, Page 435-436
- Type ERV-G LT
for low temperature applications for petroleum based products, diesel, heating oil, aviation fuel JETA 1, kerosene, petroleum and gasoline.
Temperature range -40°C up to +90°C.
Révision: 08.2024
YELLOW BAND AF Expansion Joints, Page 437-438
- Type ERV-G AF
for all aviation fuels to aviation hose standard EN ISO 1825 / EI 1529 and piping systems of air refuelling or refuelling vehicles.
Temperature range ( depending on medium ) -40° C to +65° C.
Révision: 08.2024
ORANGE BAND Expansion Joints, Page 439 & 440
- Type ERV-OR
for Liquid Petroleum Gas (LPG) according to EN 589. For tank trucks and refuelling stations.
Temperature range -20°C up to +90°C.
Révision: 08.2024

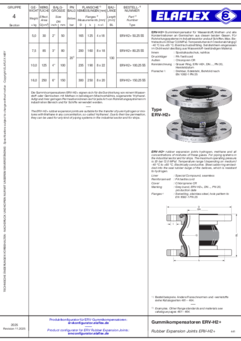

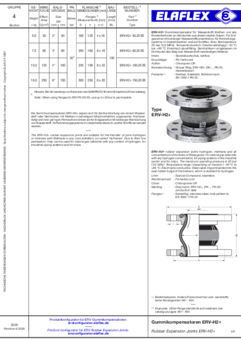

H2+ Expansion Joints, Page 441-442
Type ERV-H2+ rubber expansion joints
for hydrogen and methane or mixtures ('Hythane')
Temperature range (depending on medium) -40 °C to +65 °C
Révision: 01.2025

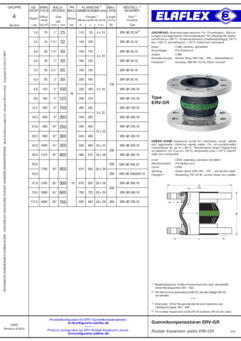

GREEN BAND Expansion Joints, Page 443-444
- Type ERV-GR
for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to +90°C.
Temperature range -20°C up to +100°C.
Révision: 08.2024
WHITE BAND Expansion Joints, Page 451-452
- Type ERV-W
for food stuffs, also oil and fat containing food. Not approved for drinking water.
Temperature range -20°C up to +90°C.
Révision: 08.2024
FLANGE choice
For the choice of flanges a great variety of combinations concerning geometrie, materials and coatings is available. Also two different flange types on one compensator are possible.
Révision: 08.2024

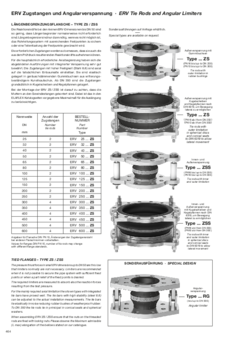

ERV Tie Rods and Angular Limiters, Page 464
Tied Flanges – Type ZS
Révision: 03.2017

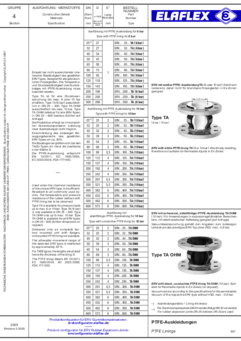

ERV Inner Sleeves, PTFE Lining, Support Spiral, Support Ring, Page 467-468

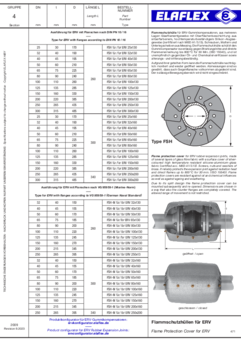

Flame Protection Cover for ERV Rubber Expansion Joints, Page 471

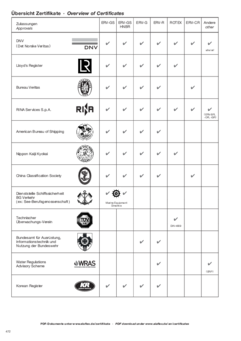

Overview of Certificates, Page 472
Thread Connections for ERV, Page 465-466
Expansion joints with thread connections, available for various ERV types.
Révision: 02.2024
Hints for Pipework Designer, Page 475-476
Installation and Operation Hints for ERV Rubber Expansion Joints, Page 479-480

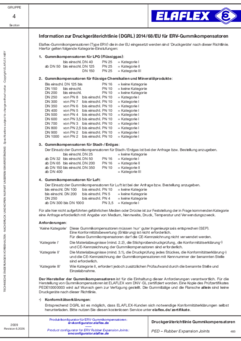

Information concerning the Pressure Equipment Directive (PED) 2014/68/EU, Page 483‑484
Catalogue Pages by Category

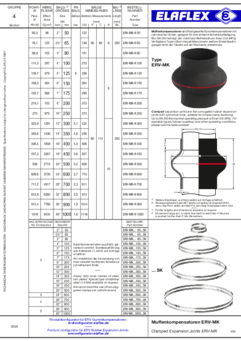

ERV Rubber Expansion Joints
- Table of content: ERV Rubber Expansion Joints
- RED BAND Expansion Joints
- ROTEX Expansion Joints
- CR Expansion Joints
- BR Expansion Joints
- RED SPOT Expansion Joints
- YELLOW BAND Expansion Joints
- YELLOW STEEL Expansion Joints
- YELLOW STEEL HNBR Expansion Joints
- YELLOW BAND LT Expansion Joints
- YELLOW BAND AF Expansion Joints
- ORANGE BAND Expansion Joints
- H2+ Expansion Joints
- GREEN BAND Expansion Joints
- WHITE BAND Expansion Joints
Information ERV Rubber Expansion Joints
- Order Number Breakdown
- Checklist for Expansion Joints
- Overview of Certificates
- Hints for Pipework Designer
- Installation and Operation Hints for ERV Rubber Expansion Joints
- Information concerning the Pressure Equipment Directive (PED)
Accessories for ERV Rubber Expansion Joints
- FLANGE choice
- ERV Tie Rods and Angular Limiters
- ERV Inner Sleeves, PTFE Lining, Support Spiral, Support Ring
- Flame Protection Cover for ERV Rubber Expansion Joints
- Thread Connections for ERV

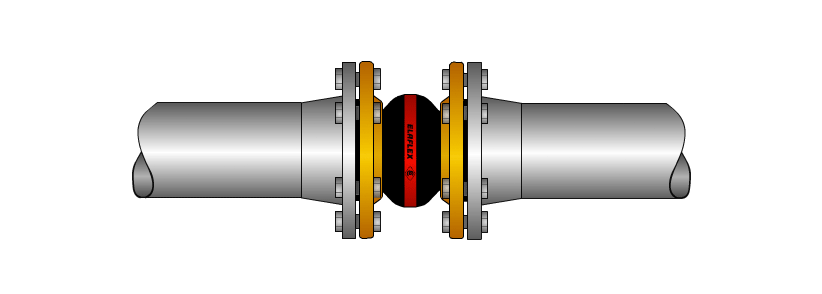

Les manchons compensateurs ERV
Pour raccorder des conduites de façon flexible, on utilise, entre autres, des manchons compensateurs en caoutchouc. Pour ce faire, ELAFLEX propose les manchons compensateurs de la marque ERV®.
Les manchons compensateurs ERV se composent d'un soufflet en caoutchouc mis en forme à cannelure unique avec armature résistante à la pression et de brides métalliques tournantes. Développé par nous il y a environ 50 ans, ce type de joint élastique est devenu depuis lors une norme reconnue dans le monde entier en termes de longueur et de construction.
Des délais de livraison courts: Avec plus de 20.000 pièces en stock, ELAFLEX Hambourg dispose d'un des plus grands entrepôts de manchons compensateurs. La base pour une livraison rapide et sûre. En fonction des conditions de fonctionnement attendues, choisissez le manchon correspondant (ex. EPDM, NBR, Hypalon ou néoprène). 13 types différents sont disponibles, de DN 25 à 1000 mm, en diverses longueurs (standard = 130 mm).
Production de qualité : Pour les manchons ERV, nous proposons exclusivement les pièces de qualité Premium de ContiTech, RFA. ELAFLEX et ContiTech sont un gage de fiabilité et durabilité.
Faites appel aux conseils de notre équipe de vente. Vous pouvez également utiliser notre Configurateur de compensateurs
!
