ERV-G 100.16
YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.
GasGuard LPG nozzle GG30
4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.
ERV-G AF
Suitable for piping systems of aviation refuelling or dispensing vehicles in accordance to EN ISO 1825/EI 1529. Suitable for all aviation fuels.
ZVA Slimline 2 GR
blue scuffguard, blue produc sleeve, guard no. 4
Accessories and spare parts: Ground cable assembly, dust cap assemblies, spouts, strainer
ER 339, ER 494, ER 495, ER 587 JET PTL, EKG 1200, GKG 19, GKG 32, GKG 38-J, ES336.1
PAL hoses for the chemical industry

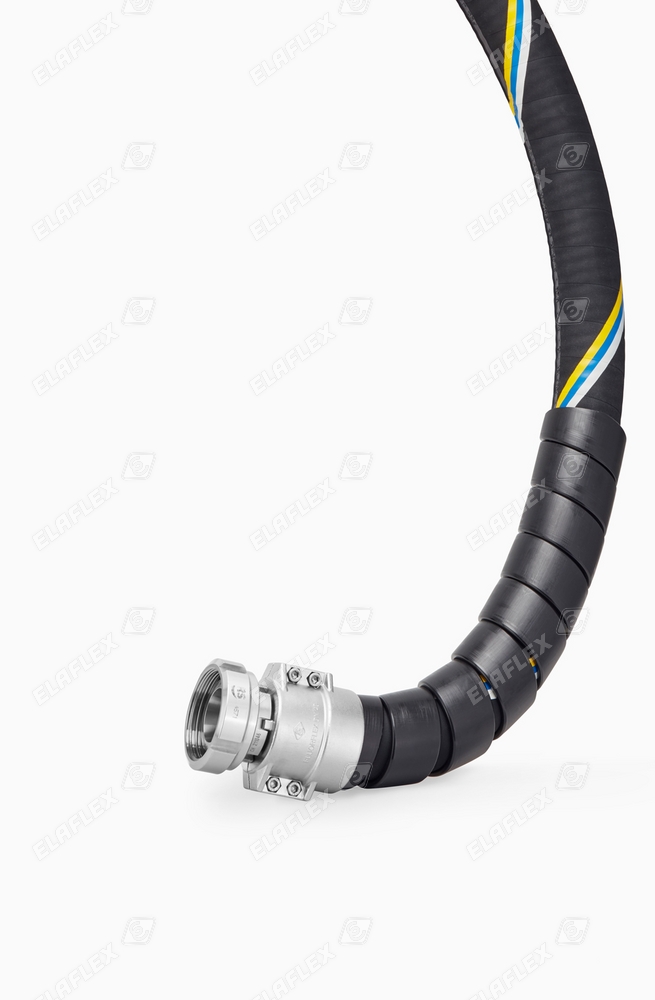

Anti-Kinking Spirals 'KSS' and 'KSS-SD'
The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
Product Badges EK 145 with design to customer specification
MK 80 Ms, Sight Glass with Rods
ZVA Slimline TD
Automatic nozzle with special seals, for solvents / chemicals
Elaflex hoses
HD, TW, LPG, FXD, SL, FEP, CHS, LMS, UTS, PTFE, PCS
ERV-GS
"Yellow Steel" Rubber Expansion Joints / ship engine room of a ferry
V 19-1" SS
Male ferrule hose coupling EN 14424 stainless steel, reusable. Slimline 19 SF (sulphur free) hose, black.
ELAFLEX Hamburg
Commissioning / Pick by Voice
ZVA Slimline 2 GR
Automatic nozzle with vapour recovery, flowrate up to 45 l / min.
Manifold at petroleum storage terminal
STW 150 hose assemblies, SFC 150.16 hose flanges
Example of a marking of test data (hydrostatic test) of a hose assembly
Vehicle refuelling Korea with LPG (L.P. Gas, Autogas, Propane)
ZVG 2 K nozzle, LPG 16 hose assembly
Hose assembly for petrol stations
Standard hose SL 16
ELAFLEX Hamburg
Assembling Spannfix hose clamps
ERV VSR:
ERV with vacuum support ring. Ring of AISI 316 Ti , used when the vacuum resistance of the chosen ERV is not sufficient.
ELAPAC FD flat sealing material
2 or 3 mm thickness, available as coil, standard size seal or in custom shape. An elastic flange seal for tank truck and tank plant construction etc., where rough sealing surfaces require a high adaptability, where flange seals should still have good flexibility to avoid pipe fractures or simple sealing materials because little or no force can be used to tighten the joint.
Guards for ZVA nozzles
suitable for all dispensers, world wide
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components – detail view
ZVA 25 with Z-Swivel
Boat Refuelling, Hose Reel
Requirements to a Hose
(English)
RN 2 x 3 SS
Reducing nipple
SG 3" Rg
Sight Glass with 3" female/male BSP thread, gunmetal
PHD-F aircraft refuelling hose
PHD 63 F
Camlock cam locking couplings
top left – ELAFLEX standard version; bottom right – ELAFLEX EASYLOC version
