ELAPHARM Type EPH
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
SG 1" 1x0 Al
Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
LNG bunkering
Transfer system
ERV-G ... TW
Dispenser / hydrant inlet pipe
Colour production: manifold
UTS and FWS hose assemblies
Storz coupling; water connector ship
AMKI 25 SS, AVKI 25 SS
'Camlock' stainless steel female and male coupling to EN 14420 - 7
Solvent filling with integrated vapour recovery in the nozzle
ZVA 25 GR, UTS hose assemblies
Customer protected special design ZVA Slimline 2 & ZVA Slimline 2 GR nozzles
Hose assemblies for petroleum based products
Yellow Band quality with nozzle, TW coupling, flange connection
V 19-3/4" NPT
Male ferrule hose coupling EN 14424 stainless steel, reusable. Slimline 19 SF (sulphur free) hose, black.
Filling of chemicals with nozzles
UTS hose assemblies, ZVA TD nozzles special type for chemicals
ZVA Slimline 2
Hose Connection with TW coupling, TSG 3" Sight Glass

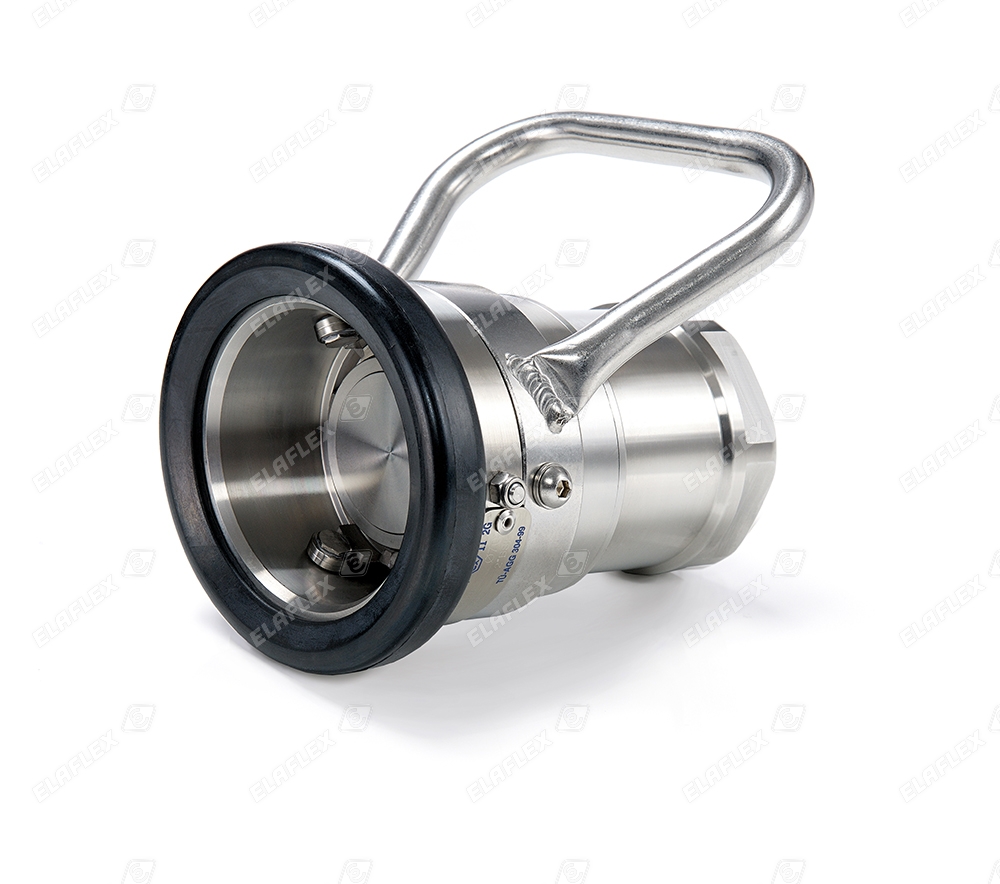

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
DCC Dry Cryogenic Coupling for LNG
Coupling process
Unloading petroleum products at the service station (road tanker to UST)
LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.
ZVF 50 JET
Ship bunkering
FHD hose assembly, flange connection
ERV Rubber Expansion Joints
Picture 5
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components – detail view
L.P. Gas rail tanker
loading and unloading with DGC Dry Gas Couplings; Use of adapters with ACME thread
V-St 50 SSE
Male threaded hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)
ELAFLEX Hamburg
Forklift loading station
Production MannTek, Sweden
HD 100 C NEON, HD 10 C sensing hose
Type HD-C, aviation hose
ZVA-GBZ
Automatic nozzle ZVA DN 19, of cast bronze (GBZ), for drinking alcohol, brandy etc. Flowrate up to 60 l / min.
RVX 32-11/4 SS
Hose coupling with male foodstuff thread and Spannfix clamps
ZVA Slimline 2 GR, black, guard 3 - bottom view
ERV VSD:
ERV with vacuum support spiral. Spiral of AISI 316 Ti, used when the vacuum resistance of the chosen ERV is not sufficient.
