Section view of a CSB 21 COAX Safety Break

RS 4 x 51/2 SS

Reducer Female/Male

MB 100 Al

Dust cap for VK 100, aluminium

ElaSil® Silicone hose assemblies DN 13-102

For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection

Filling of chemicals with nozzles

UTS hose assemblies, ZVA TD nozzles special type for chemicals

DAC-V 65, DAC-M 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - with and without sight glass

SG 1" 1x0 Al

Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

ERV-W 80.16

WHITE BAND Rubber Expansion Joint for foodstuffs, also containing oil and fat. Liner corresponds to Recommendation XXI of BfR and FDA-21CFR 177.2600. Not approved for drinking water. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically non-conductive.

GasGuard LPG nozzle GG1DN

suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure: 1.7 cm³.

M 21-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, yellow.

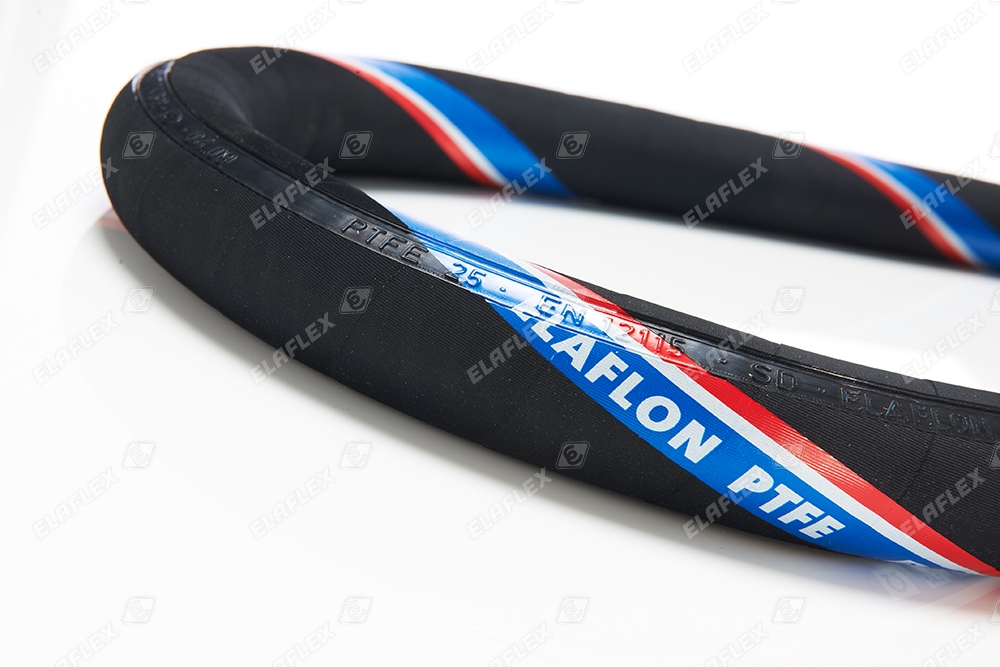

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Oasis SV 108 Sandwich Valves 1" on CNG trailer

Oasis SV108_SV104 Sandwich Valves with handle, for CNG

ERV-BR 300

for abrasive Media

AMK-St 50 SS, AVK-St 50 SS

'Camlock' stainless steel female and male hose tails to EN 14420 - 7

ZVF 50 JET

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure 10 bar (140 psi). Temperature range -40° C up to +55° C

Unloading chemical road tanker

Solvapal hose assembly with DDC Dry Disconnect Couplings

LNG Refuelling

LNG truck refuelling with 'N-LNG' Nozzle coupled to fuel, LNG 25 fill hose assembly with cover, bonding cable

Multi Product Dispenser with ZVA Slimline 2 nozzles, SSB 16 Safety Breaks with BS 16 Break Sleeves

Manufacturing warm forged parts

Example SC 150 Spannloc clamp

ELAFLEX Hamburg

Manufacturing bronze corrugated pipes

MannTek Safety Breakaway Coupling SBC 80 SS F

with flange connection

Polypal Clean hose assembly

Pharmaceutical production

AMKX 50 SS

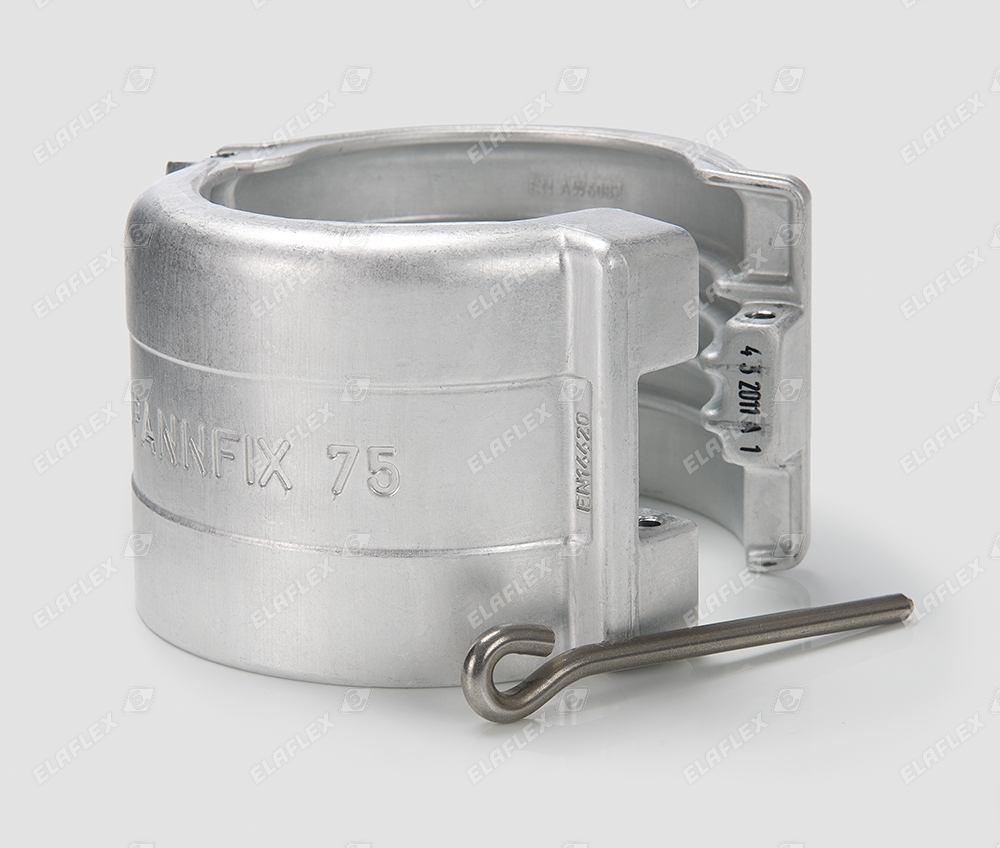

'Camlock' stainless steel steel coupler to EN 14420 - 7 with hose tail and Spannfix clamps

Solvent filling with integrated vapour recovery in the nozzle

ZVA 25 GR, UTS hose assemblies

ZVA Slimline 2 / ZVA Slimline 2 GR

Petrol station nozzles with (top) and without vapour recovery (below)

Dantec Production hose

Composite hoses: hose with customer braning, application of outer helix

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Machining spouts

DCC Dry Cryogenic Coupling for LNG

Coupling process

Ball Valve 350 bar

for Hydrogen
