Ship bunkering loading and unloading, Hose Reels, HD hose, ZV 500

Bunkerboat

Ship bunkering with LNG

DCC Dry Cryogenic Coupling with cap; CBC Cryogenic Breakaway Coupling

LNG Refuelling

N-LNG Nozzle, pull back handles to uncouple

BD 63, HD 63 C

Aircraft refuelling hoses with ELAFLEX Hose Beads 'BD'. Details see Information 7.17

RS 3/4 x 1 SS

Reducer Female/Male

TW 100, DDC-M 100, airport depot

Dry Disconnect Coupling for Loading/Unloading

Marking of High Temperature Types ZVA Slimline 2 / ZVA Slimline 2 GR

For regions with exceptionally hot summer conditions which may lead to particularly high fuel temperatures we offer High Temperature (HT) nozzle types, available for ZVA Slimline 2 and ZVA Slimline 2 GR.

Safety Swivel Break

SSB 16.0

Rail tanker discharge coupling KWK, with elbow DN 80

for damaged / dirty rail tanker or other threaded hose connections. Used e.g. for environmental protection trucks

KWZ x VK 80

Rail car adapter with TW male coupling

Bonding reel grey, high visibility bonding cable with clamp

BD 63 Hose Beads

to EI 1522 standard - notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.

ELAPHARM Type EPH

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

ERV-W 80.16

WHITE BAND Rubber Expansion Joint for foodstuffs, also containing oil and fat. Liner corresponds to Recommendation XXI of BfR and FDA-21CFR 177.2600. Not approved for drinking water. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically non-conductive.

ZVA Slimline 2 for aircraft refuelling

black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly

Rubber Expansion Joint ERV-GS 80.16

YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.

VC 75-3" SS / SS

Spannloc threaded hose coupling with BSP male thread / Spannloc of stainless steel

ZVA Slimline 2, Sight Glass SG 1" Al, hose assembly

Rail tanker unloading of petroleum based products

with FWS 80 PP St/St composite hoses and MannTek Dry Disconnect Couplings

SG 1" 1x0 Al

Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

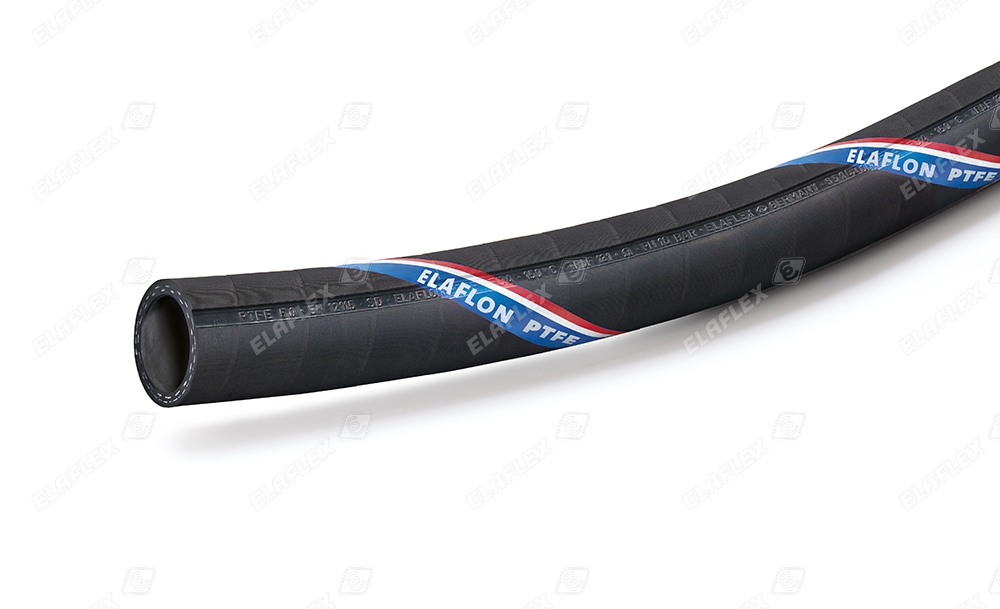

Elaflon PTFE 50 with FFX 50 SSE/SS; PCS 25 with AMKC 25 SSE/SS

Universal hoses with PFA coated fixed flange and Camlock fittings. Spannfix / Spannloc stainless steel clamps.

ZVA Slimline 2 GR, SG-COAX, ZVA SLimline 2, SG 1" Al

Multi Product Dispenser with / without vapour recovery; nozzles with Sight Glass

ZVA Slimline 2, guard no. 8D, black scuffguard, red product sleeve, SL 16 hose assembly with red colour sleeve

ERV-BR 100.16

BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.

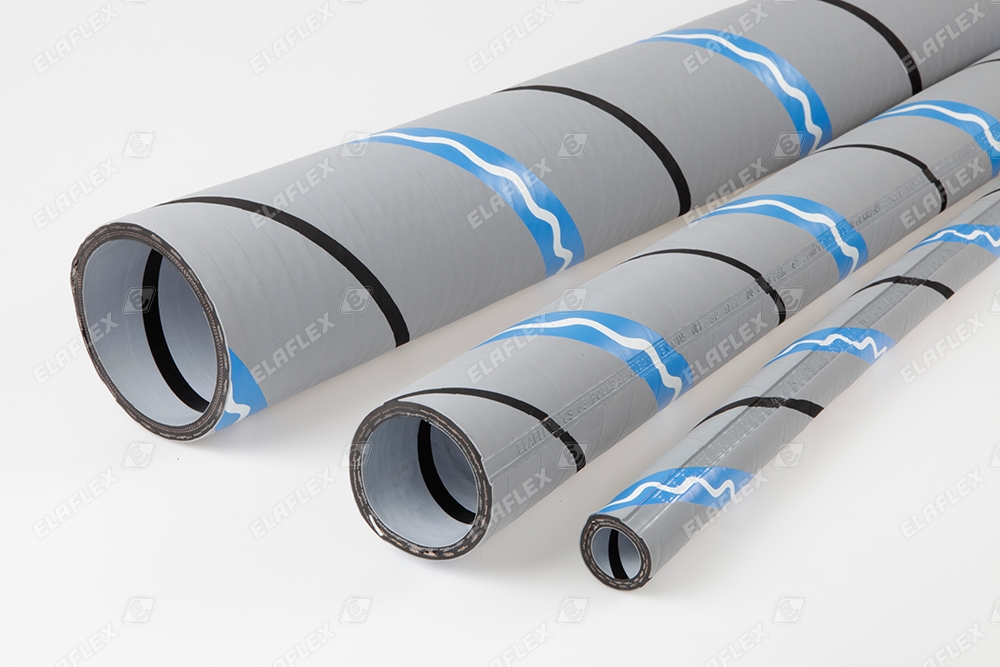

Construction of ELAFLEX composite hoses type FWS

Sectioned view of a composite hose, denomination of the components – detail view

GasGuard LPG nozzles

and LPG 16 orange hose assemblies for the filling of commercial and passenger Autogas vehicles as well as mobile and small stationary storage tanks with propane and butane.

Oasis EC100 electrically isolating couplers for CNG

VK 80-2" AG Ms

TW male coupling brass, with reduced male BSP connection (special type)

M 21-1" cr

Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, blue.

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.
