1769 images found




GSD 50 Hy

GSD 50 Hy

Coupling seal for TW couplings, CSM green

ELAPHARM Type EPH

ELAPHARM Type EPH

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

Spannloc hose clamps of stainless steel for chemical hoses

Spannloc hose clamps of stainless steel for chemical hoses

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed

Elaflex hoses

Elaflex hoses

FEP, UTS, PCS, HD, LPG, PTFE, CHS

ZVA Slimline 2 nozzles special version, Slimline dispensing hoses blue / red

ZVA Slimline 2 nozzles special version, Slimline dispensing hoses blue / red

Thailand

Rubber Expansion Joint ERV-BR 80.16

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

IBC connection with reducer RS S100x3" SS

IBC connection with reducer RS S100x3" SS

MannTek DDC-V 80, DDC-M 80, FWS 75 PP

FWS composite hoses / hose assemblies

FWS composite hoses / hose assemblies

Type FWS PTFE with male threaded fitting, Type FWS PP with Camlock coupling, Type FWS VR with "TW" female coupler MK

Fluorflex FXD universal hose assembly

Fluorflex FXD universal hose assembly

extremely flexible PTFE hose with maximum bending radius

Ship bunkering

Ship bunkering

HD hose assembly on dispenser vehicle

Automatic lathing machine, production of brass swivel parts

Automatic lathing machine, production of brass swivel parts

ZVF 50 JET overwing refuelling

ZVF 50 JET overwing refuelling

with HD-C hose assembly

Tank container, Antarctica: HD-LT hose assembly, ZVF 25 LT nozzle

Tank container, Antarctica: HD-LT hose assembly, ZVF 25 LT nozzle

Low Temperature types

ELAFIX 40

ELAFIX 40

Magnet adapter for installation in filler necks from DN 40. This adapter allows the refilling of urea solution with ZVA HV for AdBlue®, without the risk of misfillings. Meets ISO 22241-4.

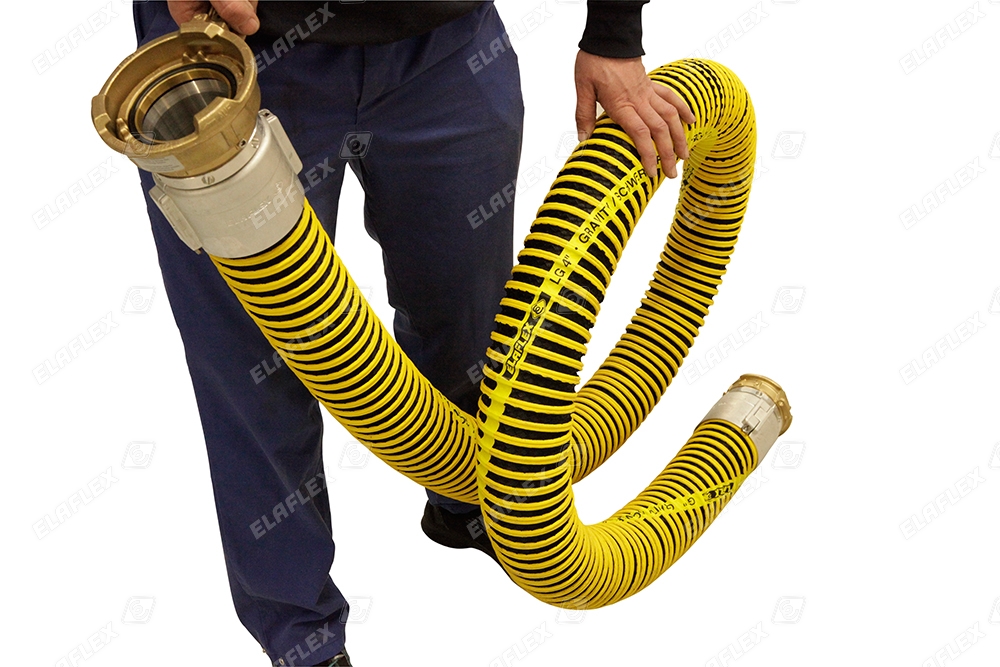

Lightweight Gravity Discharge Road Tanker Hose LG 4"

Lightweight Gravity Discharge Road Tanker Hose LG 4"

with TW couplings

Camlock hose couplings: system comparison

Camlock hose couplings: system comparison

right hand side - industry standard, with cable tighteners to fix levers. Left hand side: Easyloc from Elaflex with automatically secured levers.

Stainless steel Hose Reel spring rewind black, FEP 38, DDC-M 50 SS

Stainless steel Hose Reel spring rewind black, FEP 38, DDC-M 50 SS

Alternative fuels: B 20 (Diesel with up to 20% Biodiesel), E 85 (Gasoline with up to 85% Ethanol)

Alternative fuels: B 20 (Diesel with up to 20% Biodiesel), E 85 (Gasoline with up to 85% Ethanol)

ZVA Slimline 2, ZVA Slimline 2 GR

ERV-R

ERV-R

"Red Band" Rubber Expansion Joints/ Osmose

TWD-W coupling seal

TWD-W coupling seal

NBR white

COAX Safety Break NR

COAX Safety Break NR

CSB 21 NR

Rubber Expansion Joint ERV-OR 80.25

Rubber Expansion Joint ERV-OR 80.25

ORANGE BAND expansion joints for Liquid Petroleum Gas (LPG) to EN 589. For tank trucks and refuelling stations. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically dissipative.

UTL 50 universal chemical hose assembly and TW female coupler MKC 50 SS

UTL 50 universal chemical hose assembly and TW female coupler MKC 50 SS

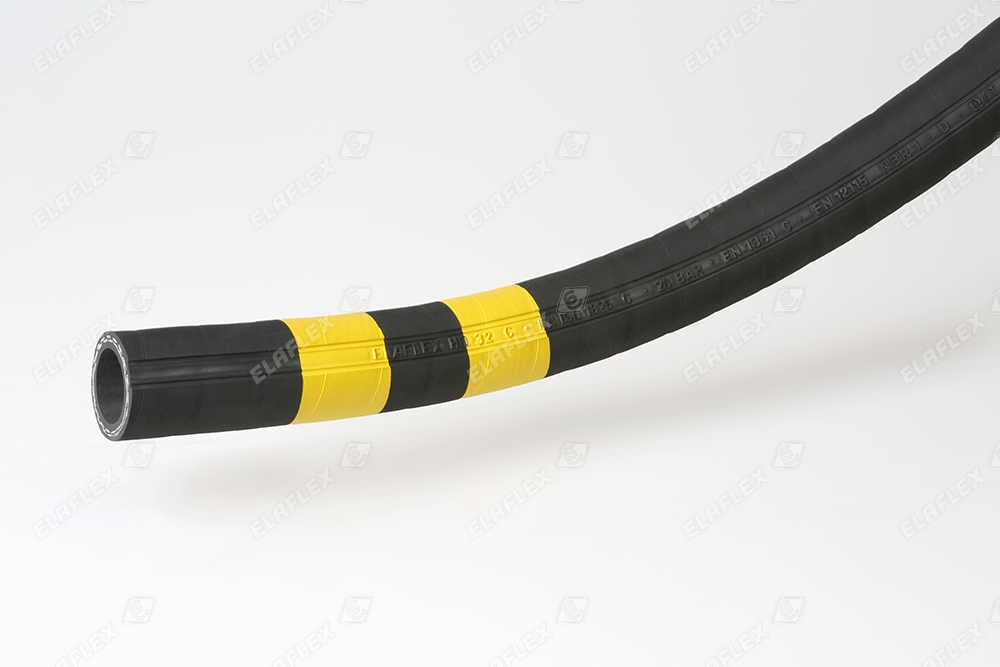

HD 32 C

HD 32 C

Yellow Band' aircraft refuelling hose, suitable for all aviation gasolines and jet fuels (JET A 1), deicing fluids and motor oils. Temperature range - 30° up to + 90° Celsius. Electrical resistance between 1,000 and 1 million Ohm.

VB 80 Al

VB 80 Al

TW dust plug, aluminium

ContiTech Production ERV

ContiTech Production ERV

Testing UV resistance

Elaflex Pacific (Australia)

Elaflex Pacific (Australia)

Construction

ELAFLEX Hamburg

ELAFLEX Hamburg

Cutting area for dispensing hose

V 63 2½" SS

V 63 2½" SS

Hose coupling with male thread
