IBC unloading

IBC unloading

Coupling of chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-reducer RS 60 x 2 SS, directly attached to IBC.

ZVA Slimline 2, black - top view

ZVA Slimline 2, black - top view

ZVG 2 ACME nozzle for L.P. Gas / Autogas

ZVG 2 ACME nozzle for L.P. Gas / Autogas

visible: Magnet within the guard for the dispenser Reed Switch

Solvapal hose assemblies

Solvapal hose assemblies

Solvents

Urea solution filling, truck:

Urea solution filling, truck:

'ZVA HV for AdBlue®' nozzle, 'Slimline 16 for AdBlue®' hose

DDC-V Dry Disconnect Couplings for various media

DDC-V Dry Disconnect Couplings for various media

tank storage; TW hose assembly

ELAFLEX Hamburg

ELAFLEX Hamburg

Incoming goods / flanges

ZVA-GBZ

ZVA-GBZ

Automatic nozzle ZVA DN 19, of cast bronze (GBZ), for drinking alcohol, brandy etc. Flowrate up to 60 l / min.

DDC-M 25-1" SS

DDC-M 25-1" SS

MannTek Dry Disconnect Coupling, DN 25, stainless steel

Fuel delivery at the petrol station

Fuel delivery at the petrol station

LTW 75 fuel delivery hose, MKX 80 female TW coupler

AMK-St 38 SSE

AMK-St 38 SSE

Camlock female coupler, hose tail for assembling with Spannfix or Spannloc. Material: stainless steel with universally resistant PFA coating (red)

"Yellow Band" Rubber Expansion Joints, aircraft dispenser

"Yellow Band" Rubber Expansion Joints, aircraft dispenser

ERV-G 200, ERV-G 150

Ship bunkering

Ship bunkering

FHD hose assembly

ERV-R 150.16 ZS 2

ERV-R 150.16 ZS 2

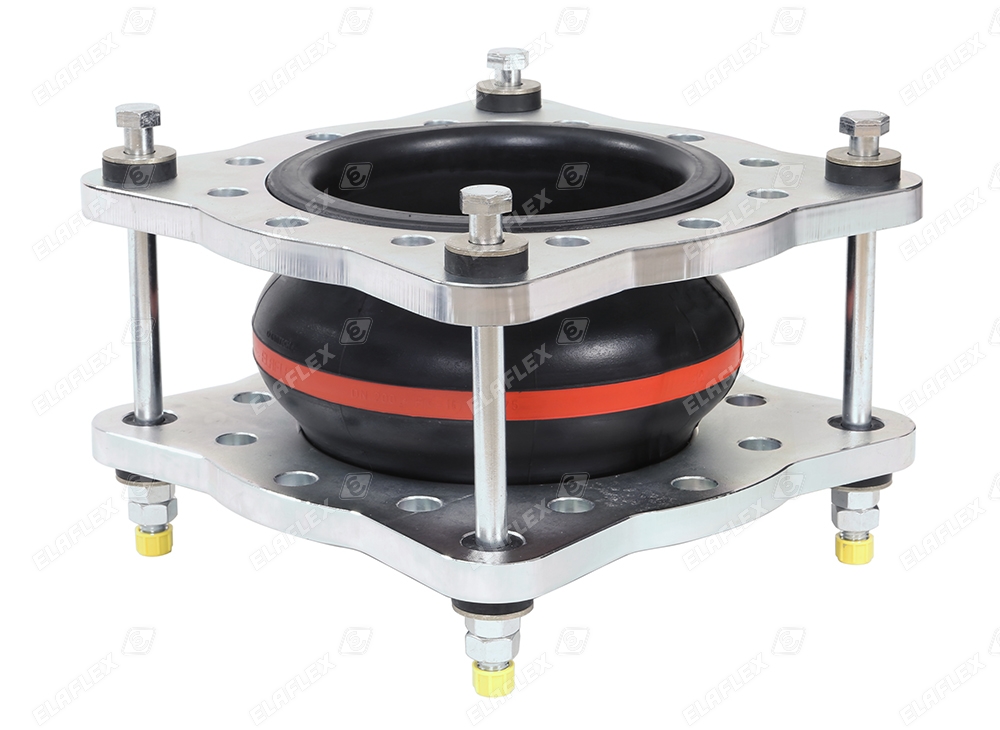

Red Band Rubber Expansion Joint with "ZS" limiter (tie rods with outer limitation in rubber bushings)

ELAFLEX Hamburg, narrow aisle stock for small parts

ELAFLEX Hamburg, narrow aisle stock for small parts

L.P.Gas home delivery:

L.P.Gas home delivery:

LPG 38 hose assembly - Aboveground storage Tank

Hose Connection with TW coupling, TSG 3" Sight Glass

Hose Connection with TW coupling, TSG 3" Sight Glass

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

Road tanker with hose reel -

Road tanker with hose reel -

Quick change system between ZV 500 and ZVA 32 nozzles via DDC Dry Disconnect Coupling

MB 80 SSE

MB 80 SSE

TW dust cap of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

ERV-W 80.16

ERV-W 80.16

WHITE BAND Rubber Expansion Joint for foodstuffs, also containing oil and fat. Liner corresponds to Recommendation XXI of BfR and FDA-21CFR 177.2600. Not approved for drinking water. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically non-conductive.

Hose Reel Spring Rewind

Hose Reel Spring Rewind

HD 25 C, ZVA 25 AF red, GKG 25, EKG 1200

Colour production: mixer

Colour production: mixer

UTS hose assemblies

Ferrule threaded hose coupling M 19-1" Ms

Ferrule threaded hose coupling M 19-1" Ms

for petrol station dispensing hoses

Chemical manifold

Chemical manifold

FEP 5O, MannTek DDC-M 5O SS

GasGuard LPG nozzle GG20DN

GasGuard LPG nozzle GG20DN

With long connector nut to access 'hard to reach' fill points. "DN": suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure : 1,7 cm³.

Universal hose UTS 50

Universal hose UTS 50

M 21-1" cr

M 21-1" cr

Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, yellow.

Unloading petroleum products at the service station (road tanker to UST)

Unloading petroleum products at the service station (road tanker to UST)

LG 3" hose assembly for gravity discharge, LTW 50 hose assembly for vapour balance

FWS composite hoses / hose assemblies

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

ELAFLEX Tanktechnik, Production Plettenberg / Germany

ELAFLEX Tanktechnik, Production Plettenberg / Germany

Contour check
