HD-C LT, Low Temperature
Antarctica: Low Temperature aircraft refuelling hoses in action; fuel transfer from drums via mobile pump
ERV TA:
ERV with white PTFE lining. Used when the chemical resistance of the chosen ERV type is insufficient. Resistant to all commonly used liquids. Electrically isolating, therefore not suitable for flammable liquids in Ex-Zones. Admissible working temperature of expansion joint has to be observed. For maximum pressure of 6 bar – not suitable for vacuum.
ZVF 50 UL 91 / green
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
ERV-G 1000, ERV-BR 300
Tank storage, mixer: LTW hose assemblies
ERV-GS
"Yellow Steel" Rubber Expansion Joints / ship engine room of a ferry
Road tanker Sweden
large reel with HD hose assembly, DDC-V (Dry Disconnect Coupling, tank unit) and DDC-K (caps)
Construction site / on site refuelling:
ZVA 500 manual bulk nozzle (shut off by limit switch), HD hose assembly, road tanker
H2 Hydrogen
ERV-H2+ PN 25, DN 80 und DN 100
DAC, Airport Depot
Dry Aircraft Coupling ISO 45 with HD-C hoses for bottom loading of aircraft refuellers at airport depot
Hose Assemblies with Flange - Elapac seals
On board of an aircraft refueller: TW-hose, Spannloc flanged coupling; flange seal: Elapac.
Hose Connection with TW coupling, TSG 3" Sight Glass

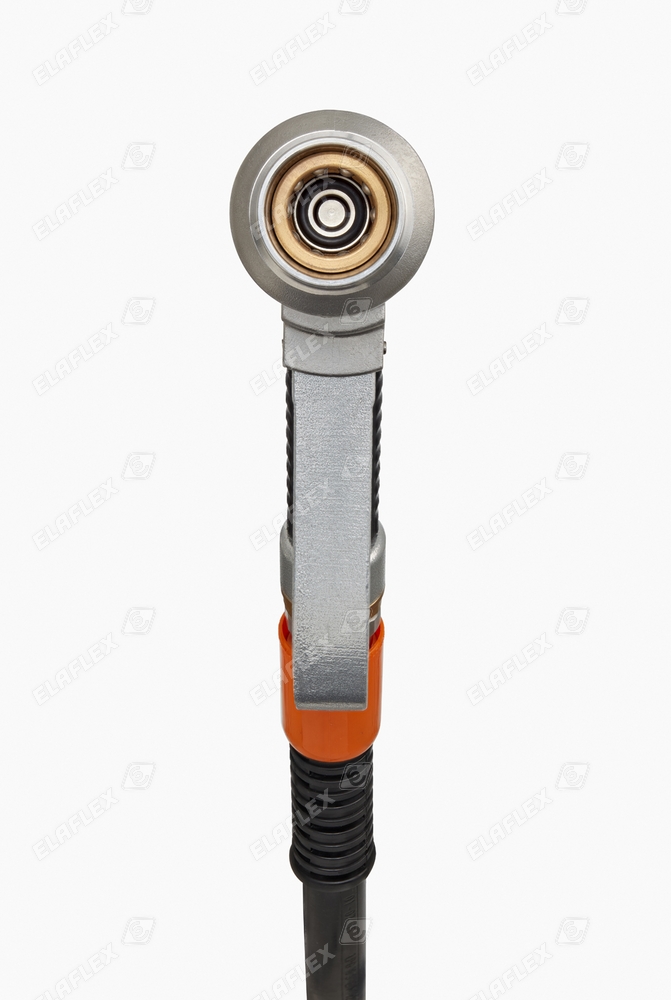

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

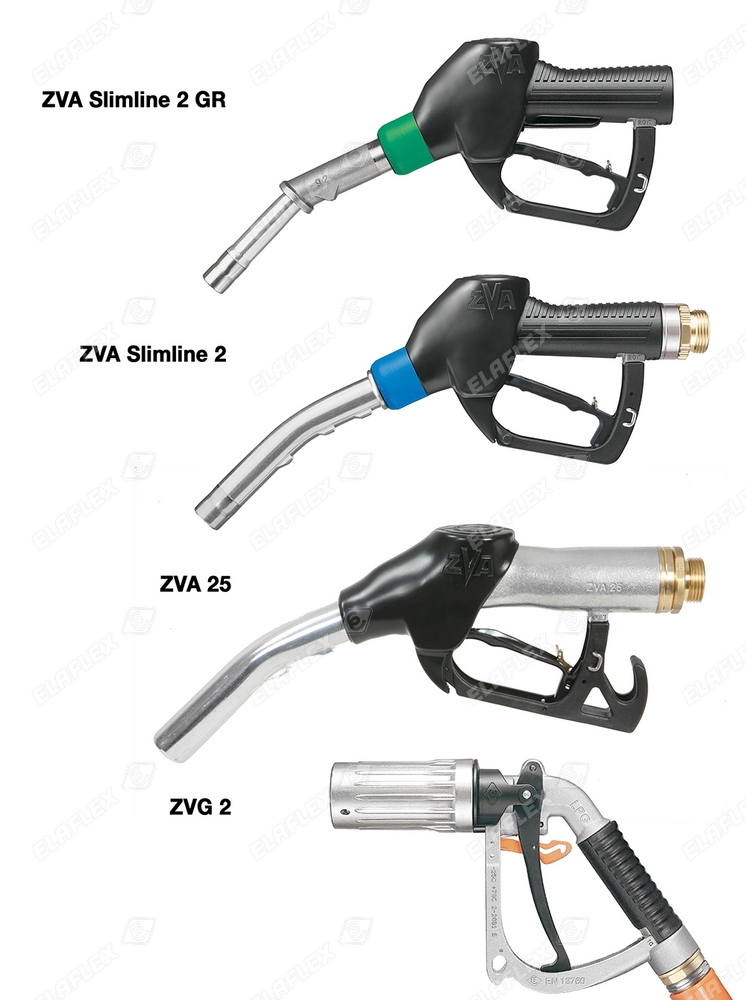

ZVA Slimline 2
ELAPHARM Type EPH
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
Manufacturing of turned parts
Polypal Clean hose assembly
Pharmaceutical production
SG 1" 1x0 Al Propeller
Sight Glass with propelller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
ZVG 2 DISH
Nozzle for L.P. Gas / Autogas, with 'Italian' Claw Coupling. Pictured: coupling open / closed
LBS 50 hose assembly for foodstuffs, FDA conform
with RMC 50 SS/SS (DIN 11851 foodstuff threaded coupling and Spannloc clamps of stainless steel)
ERV-G 400.10
DN 400
Elaflon Plus FEP hose assembly with KSS anti kinking sleeve
flange hose fitting with special coating
Rail tanker unloading of petroleum based products
FWS PP St/St composite hose, MannTek Dry Disconnect Couplings
RS 2 x 78 SS
Reducer Female/Male
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Rail Tanker Dischharge Coupling KWK SS/Vi x VK 50 SS/Vi
Vehicle refuelling Korea with LPG (L.P. Gas, Autogas, Propane)
ZVG 2 K nozzle, LPG 16 hose assembly
ERV-CR 100 (4")
'CR' Rubber Expansion Joint for cold and warm water / ship engine room
UTS hose assembly
Colour production plant
ELAFLEX Hamburg
Incoming goods / flanges
ZVA 25
Special type for solvents / chemicals
L.P.Gas home delivery:
LPG 38 hose assembly
