ERV-CR ... ZS

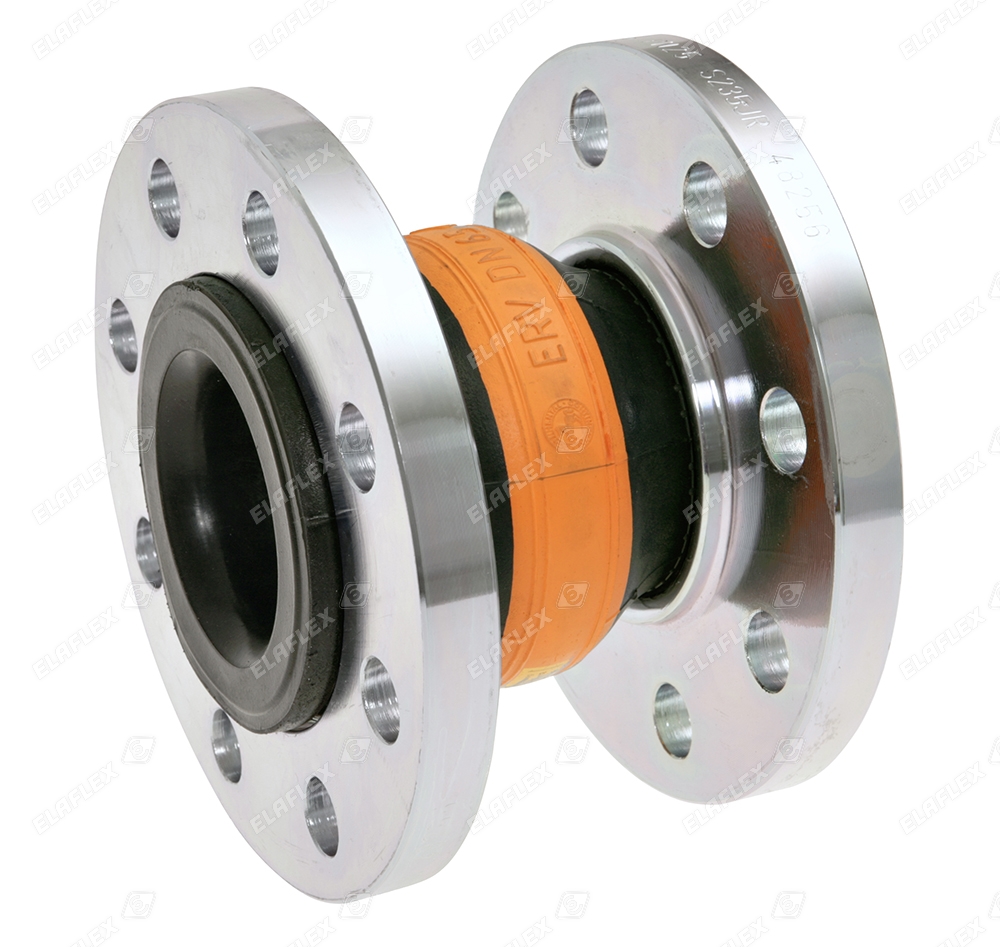

"CR" Rubber Expansion Joints; water purification plant

SPANNFIX pinned safety clamps of aluminium

SX 75 Al

Flange seal FD 220-162 of ELAPAC

Construction site / on site refuelling:

ZVA 500 manual bulk nozzle (shut off by limit switch), HD hose assembly, road tanker

PAL hose assemblies:

PCD 32 / RMC-SS, Butapal 32 / ACMX, Polypal Plus 50 / SFC 50 SS, Tecnopal 38 / MKX-SS, Pyropal 38 / MC38

ZVA Slimline 2, filler inlet, Diesel refuelling

Hot bitumen hose - loading (bunkering) ship

HB 100 hose assembly

Chemical manifold

FEP 5O, MannTek DDC-M 5O SS

LNG Refuelling

LNG truck refuelling with 'N-LNG' Nozzle coupled to fuel, LNG 25 fill hose assembly with cover, bonding cable

Slimline SF 19 black

Quality petrol pump hose for gasoline and diesel fuels. Special type 'sulphur-free'. Sulphur content of fuel does not increase, even if medium remains with the hose for a longer time, see Information 12. 15 and catalogue page 111c.

Premium refuelling equipment from ELAFLEX

Filling of Heating Oil Tanks: Adapter KR 50-21/2"

for difficult to reach filler inlets

Elaflon PTFE

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

LBS 50 foodstuff hose, RMC 50 SS foodstuff fitting with Spannloc of stainless steel

Aseptic bulk filling

LPG Autogas dispenser, ZVG 2 ACME nozzle, LPG 16 dispensing hose

Slimline 21 yellow

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

MB 80 SSE

TW dust cap of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

ERV-R

"Red Band" Rubber Expansion Joints with limiters / pump station

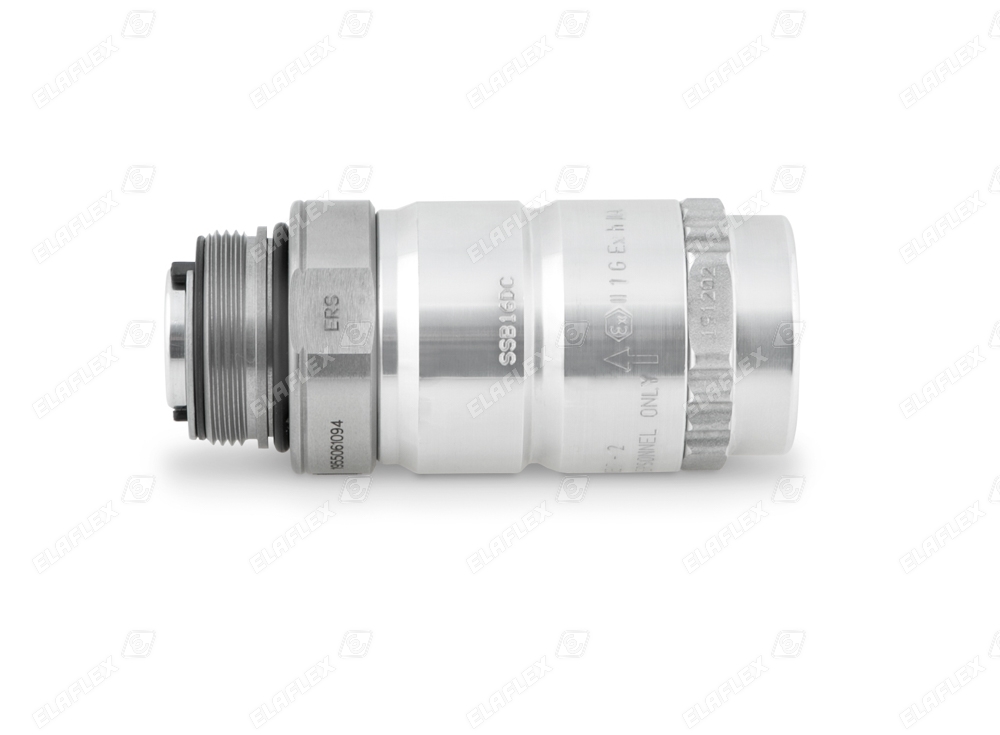

Safety Swivel Break SSB 16 SS of stainless steel f. ZVA HV for AdBlue®

old design

Fluorflex FXD universal hose assemblies

with inner corrugation for maximal flexibility. Picture 1

Overview "From terminal to nozzle"

Ship bunkering with LNG

DCC Dry Cryogenic Coupling CBC Cryogenic Breakaway Coupling

Vehicle refuelling with LPG (L.P. Gas, Autogas)

GasGuard GG20 ACME nozzle

LPG road tanker loading with MannTek SBC Safety Breakaway Couplings

L.P. Gas road tanker: long hose reel, LPG 32 hose assembly

ELAPHARM Type EPH-OHM G

electrically conductive 'OHM/T', with light grey cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, black PTFE liner. Clamp fittings, lining flared (free of dead spaces).

ELAFLEX Hamburg

Assembling ERV small DN

Hose Reels group picture

ZVF 50 JET overwing refuelling

LeverAssist hold-open aid for comfortable refuelling
