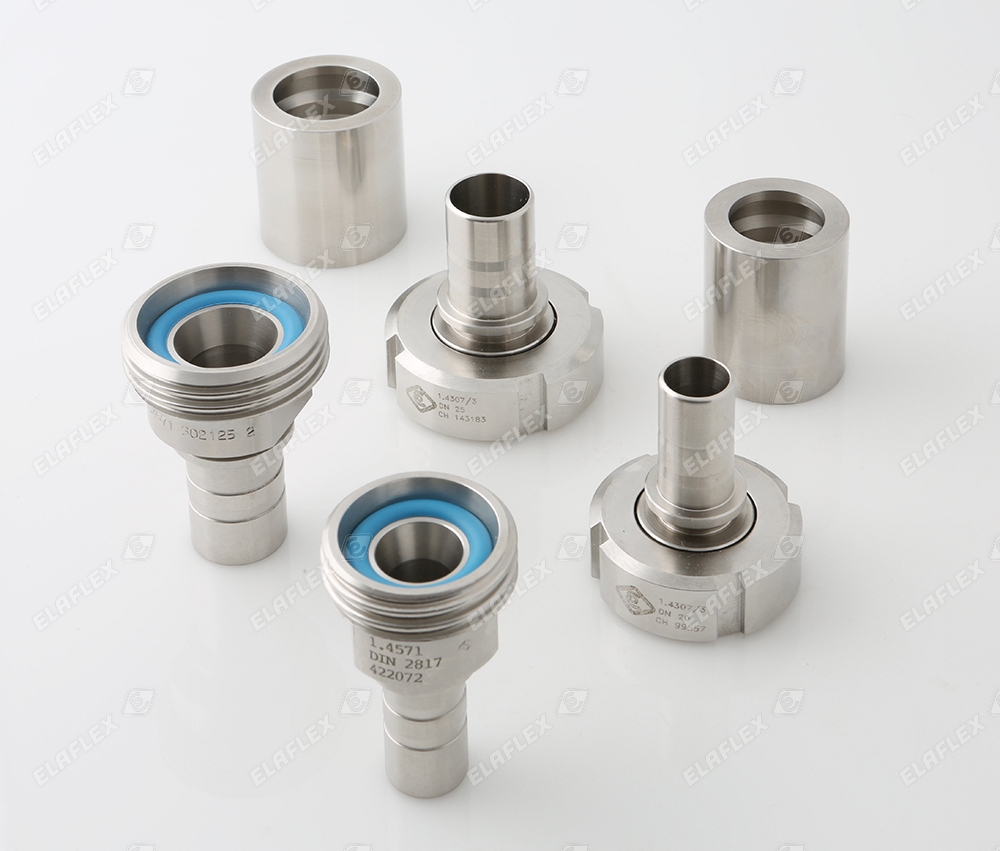

Hot stamping process, TW coupling part

Polypal Clean PCS25, RMC 25

Filling of houshold cleaning bottles

Yellow band aircraft refuelling hose, hose coupling with male thread, Spannloc aus Aluminium

HD 50 C, VC 50 SS, SC 50 Al

ELAFLEX Hamburg

Assembling TW hose coupling with Spannloc clamps

L.P. Gas road tanker: long hose reel, LPG 32 and LPG 25 hose assemblies

MannTek SJ swivel

For long and heavy aviation refuelling hoses: Hose Beads 'BD' to EI 1522 standard

They notably improve handling as they reduce friction against the tarmac. They additionally protect against hose abrasion. 'BD' Hose Beads are highly break resistant, contain no bolts or nuts, can be easily assembled or disassembled and are suitable for reeling.

ZVG 2 K (Korea)

uncoupling from J 15 filler connection

Rubber Expansion Joint ERV-BR 80.16

BR Expansion Joints, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks). Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e.g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR

VB 100 SSE

TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

ZV 500, hand

High performance manual operated dispensing nozzle with 'TW' coupling MK 50 for Diesel, fuel, oils, petroleum

ERV-R ... ZS

"Red Band" Rubber Expansion Joints with limiters

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

LNG Refuelling

Align N-LNG Nozzle

Oasis BV706 ball valves with Code 62 flange connection, for CNG

Elaflon Plus PTFE 38

Filling of small containers for chemicals

Ship bunkering

HD hose assembly on dispenser vehicle

LTW 75 hose assembly

with MKX 75.80 Ms

GasGuard LPG nozzle GG30

4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.

ELAFLEX hose quality: braided reinforcements

serve for flexibility, low weight and increased lifetime

ERV-G 150.TW, ERV-G 80.TW

Aircraft refueller

Hose Trolley for terminal operations (bunkering, cargo and refinery)

Hose Trolley HTR-T

Hose Assemblies with Flange - Elapac seals

On board of an aircraft refueller: TW-hose, Spannloc flanged coupling; flange seal: Elapac.

ELAPAC FD flat sealing material

2 or 3 mm thickness, available as coil, standard size seal or in custom shape. An elastic flange seal for tank truck and tank plant construction etc., where rough sealing surfaces require a high adaptability, where flange seals should still have good flexibility to avoid pipe fractures or simple sealing materials because little or no force can be used to tighten the joint.

VSR vacuum support ring for ERV Rubber Expansion Joints

to increase vacuum resistance of a chosen ERV type. Open ring of stainless steel 1.4571

L.P. Gas rail tanker

loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange

H2 Hydrogen

ERV-H2+ PN 25, DN 80 und DN 100

Dantec Production hose

Composite hoses: crimping of a flanged hose coupling

Ship loading various media - STW 150 and UTS 150 hose assemblies

ELAPHARM and Tecnopal hose assemblies
