ELAFLEX refuelling equipment:

Quality is in the detail.

Connection UTS hose assembly

Belgium

ZVF 25 with EKG and GKG

Manual nozzle DN 25 for aircraft overwing refuelling, with ground cable assembly, dust cap assembly. NEW: free of non-ferrous metals to JIG rules. Note: yellow chrome plating on swivel is 'free or non-ferrous metal'.

HD-C aircraft refuelling hose

TW 75 E

ZVA Slimline 2, guard no. 8D, black scuffguard, red product sleeve, SL 16 hose assembly with red colour sleeve

MK 80-90 SS; MK coupling stainless steel with bent lever 90°

TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

ZVG 2 EURO UL

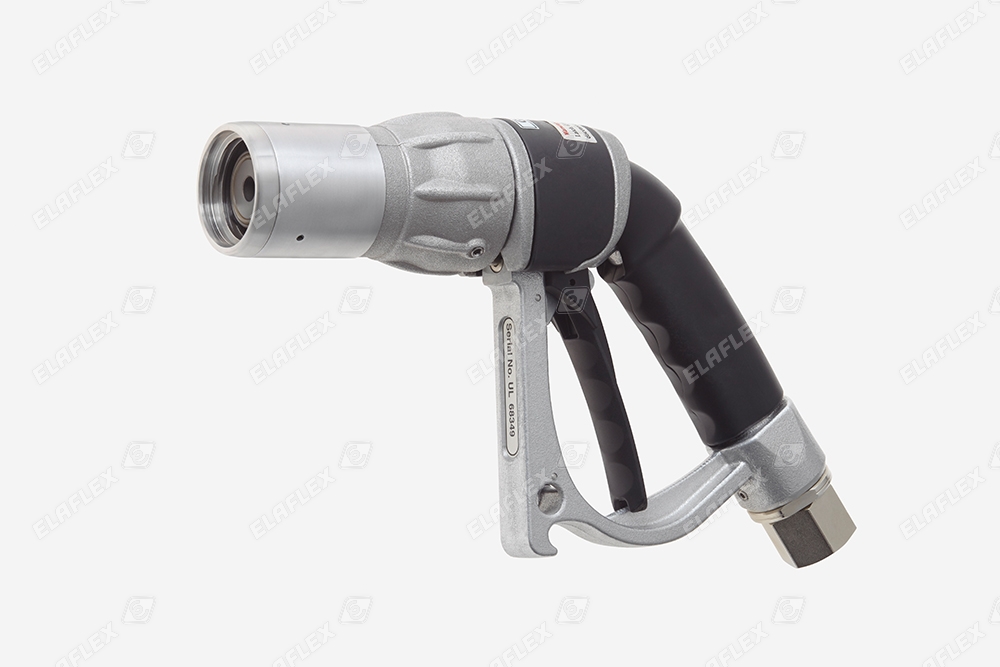

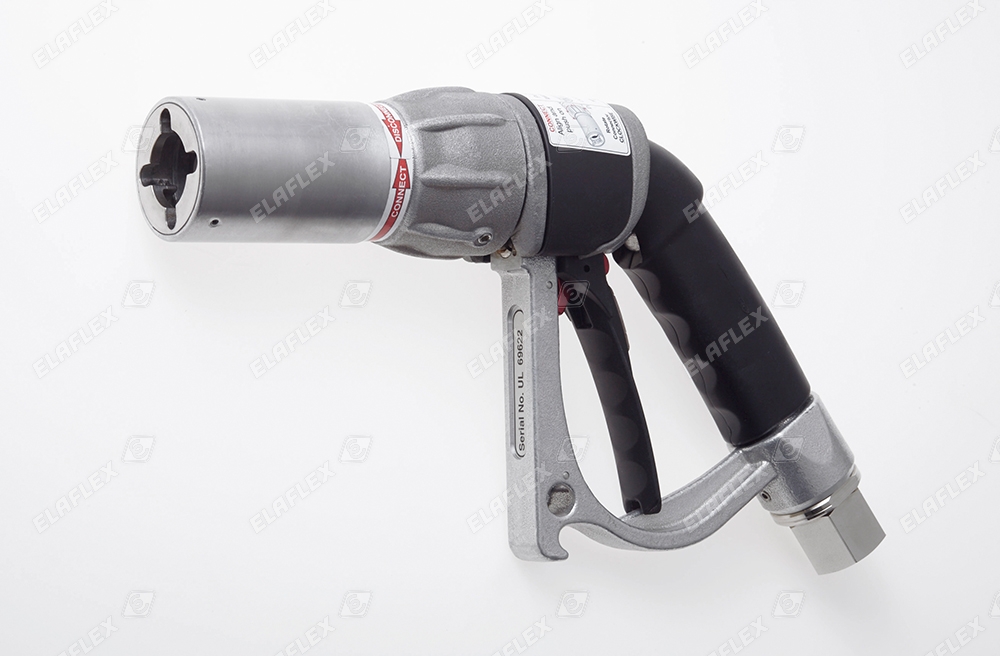

L.P.Gas nozzle for Autogas refuelling with propane, butane and their mixtures - with "EURO" connector; UL listed.

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

ELAPHARM Type EPH

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

Optional service for hose assemblies:

BandIt hose marking with test data

ELAFLEX Hamburg

Stock special flanges, pick by voice

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Rail tanker loading and unloading of petroleum based products

Filling of chemicals with nozzles

UTS hose assemblies, ZVA TD nozzles special type for chemicals

MannTek, DDC-M 50, DEC-M 38, DDC-M 80, DCC-M 50, DGC-M 80, DAC-M 65, DAC-V 65

Colour production: manifold

UTS and FWS hose assemblies

ERV-G 100.16

YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

TSVX 50

Hose connectors with double shank of hot stamped brass, with Spannfix safety clamps of hot stamped aluminium.

ELAFLEX Hamburg

Assembling Spannloc hose clamps

ERV-W 80.16 ZS 2

White Band Rubber Expansion Joint with "ZS" limiter (tie rods with outer limitation in rubber bushings)

Adapter coupling DGC / ACME

DGC-V 50 x 1 3/4" ACME. Dry Disconnect Couplings are state of the art for the fast and safe loading/unloading for liquefied gas (LPG). Connecting with standard fittings is still possible with adapters, like this one with ACME thread.

Marine bunkering and cargo hoses

ship to shore cargo transfer

HD 100 C, HD 10 sensing hose

Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.

Elaflex Pacific (Australia)

Manufacturing GasGuard GG1 nozzle

Elaflex Pacific (Australia)

Functioning test GasGuard nozzle

Universal hose UTS 50

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed

Ship bunkering with LNG

DCC Dry Cryogenic Coupling with cap; CBC Cryogenic Breakaway Coupling

Fluorflex FXD universal hose assembly

extremely flexible PTFE hose with maximum bending radius

ELAFLEX Hamburg

Manufacturing bronze corrugated pipes
