ERV VSR:
ERV with vacuum support ring. Ring of AISI 316 Ti , used when the vacuum resistance of the chosen ERV is not sufficient.
Sight Glasses for petrol station nozzles
SG 1" Al, SG-COAX, special types with Propeller
ElaSil® Silicone hose assemblies DN 13-102
For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection
Elaflon Plus FEP 25
ZVA Slimline 2 nozzles, ESB 16 Safety Breaks, Slimline hose assemblies
Paraguay
"Yellow Band" Rubber Expansion Joints, aircraft dispenser
ERV-G 200, ERV-G 150
Bunker boat: HD hose assembly on reel, ZV 500 nozzle
VB 80 SSE
TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
Motorcycle refuelling at the petrol station
ZVA Slimline 2 GR, Germany
SL 16 for AdBlue® (blue) hose assembly with anti-kinking sleeve, colour sleeve
RMX 32 SS / SS

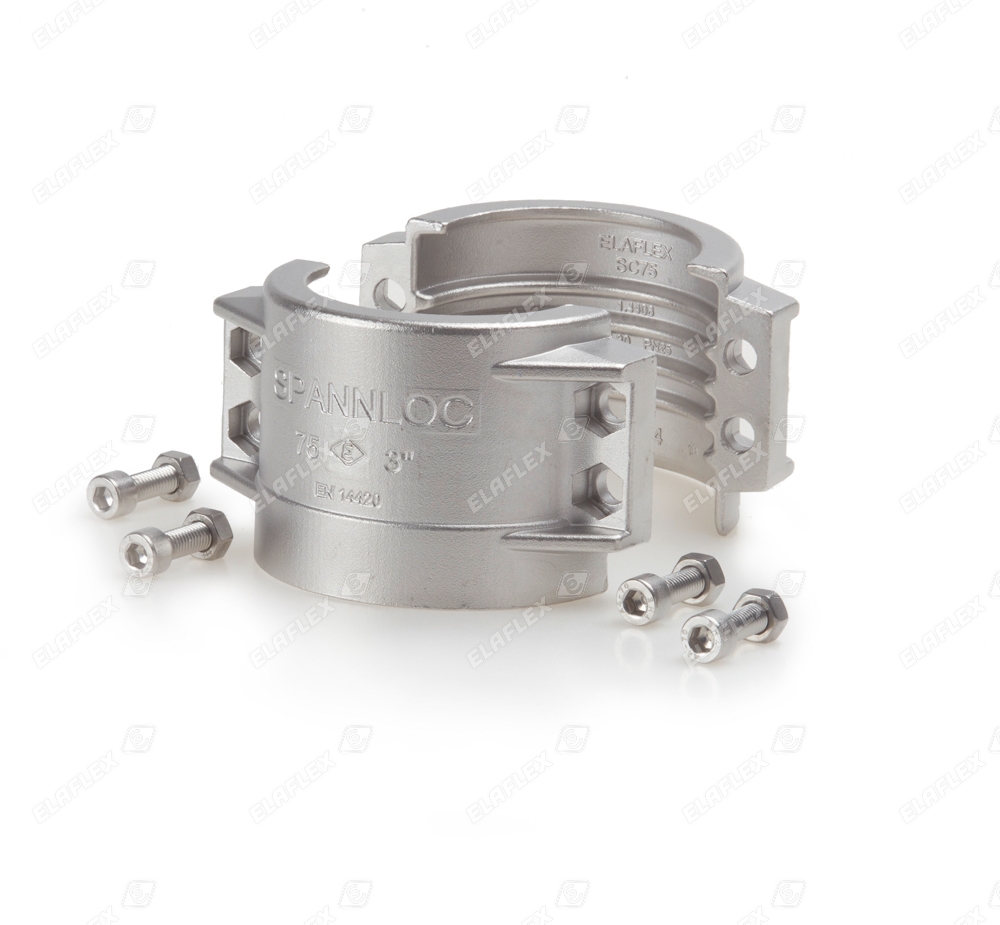

Spannloc threaded hose coupling with foodstuff thread / Spannloc of stainless steel
ERV TAS:
ERV with PTFE lining and PTFE vacuum support ring. Properties like type TA, but also suitable for vacuum service, up to 70° C.
Trailer Inline Safety Breaks
IB108
Vehicle refuelling with LPG (L.P. Gas, Autogas)
ZVG 2 DISH nozzle
ELAFLEX Hamburg
Incoming goods / flanges
ELAFLEX Hamburg
Nozzle stock, ZVA Slimline 2 GR
Oasis HC308 Ultra Fast Quick Fill Coupler, SAE male, for CNG
ERV-OR 65.25
ORANGE BAND Rubber Expansion Joint for Liquid Petroleum Gas (LPG) acc. to EN 589. For tank trucks and refuelling stations. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically dissipative.
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components (English)
Oasis EC100 electrically isolating couplers for CNG
ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid
LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed
Elaflon Plus FEP 75, MK-A 80 SS
Loading and unloading of chemicals. TW coupling with active safeguard lever
Universal hose assembly
PCS 75 (Polypal Clean DN 75 mm) with MX 75-3" SS and DDC-M 80-3" SS Dry Disconnect Coupling
DCC Dry Cryogenic Coupling for LNG
Coupling process
Nozzle ZVG 2 ACME, hose assembly LPG 16 orange, nozzle boot NB-ZVG
SSB 16 LV
Safety Swivel Break, for ZVA LV for AdBlue®. Calibration switch 10 l/min – 5 l/min
Oasis Engineering Ltd, New Zealand (CNG refuelling products)
Production Picture 7
ERV-G 100 TW
ERV-G
Ship engine room: 2 Yellow Band Expansion Joints mounted together for extra permissable movement
LNG Refuelling
LNG Nozzle 'N-LNG'
