DAC-V 65
Aircraft refueller, Dry Aircraft Coupling to ISO 45 for bottom loading
ERV-GS
"Yellow Steel" Rubber Expansion Joints / ship engine room; Netherlands
Safety Crimping Ferrule of stainless steel
SH 50 SS
ZVA 25, bus refuelling
V 19-1" cr
Male ferrule hose coupling EN 14424, reusable. Slimline 19 SF (sulphur free) hose, black.
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Sight Glass SG 2" SS/Vi with MK 50 SS/Vi and VK 50 SS/Vi
ERV with FSH:
Flame protection cover (open)
Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies
ELAFLEX Hamburg
ERV, assembling vacuum support spiral VSD
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Plettenberg factory 2
Production MannTek, Sweden
HD 38 C, VX 38 - 11/2 Sn
Hose assembly for aircraft refuelling, fitting in contact with medium tin plated
Solvent filling with integrated vapour recovery in the nozzle
ZVA 25 GR, UTS hose assemblies
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure 10 bar (140 psi). Temperature range -40° C up to +55° C
Oasis ball valves for CNG in winter
ZAF Coax adapter (splitter valve) at petrol station dispenser
ELAPHARM Type EPH 25
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

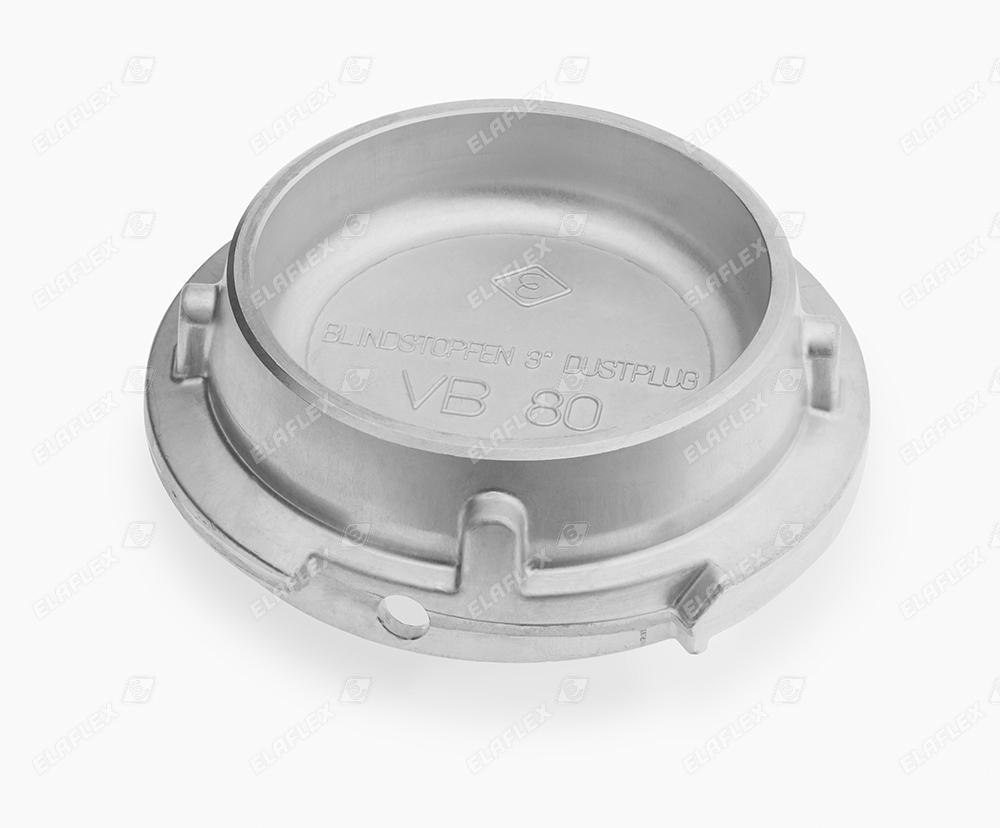

TW coupler MK 80 SS-90° (bent lever) and dust plug VB 80 ADR SS with pressure relief
Petrol station in Singapore
ZVA Slimline 2 nozzle, SSB 16 Safety Break, Slimline hose assembly
Offshore oilrig: TW hose assemblies, DDC Dry Disconnect Couplings
Rail tanker loading and unloading of petroleum based products
Hose assemblies
Polypal Clean with RMC, LPG with ACMX, Polypal Plus with SFC-SS, Tecnopal with MK-SS
GasGuard LPG nozzles
and LPG 16 orange hose assemblies for the filling of commercial and passenger Autogas vehicles as well as mobile and small stationary storage tanks with propane and butane.
LNG Refuelling
LNG Safety Break SB-LNG VL und SB-LNG FL
DDC-V Dry Disconnect Couplings for various media
tank storage; TW hose assembly
ELAPHARM Type EPH
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
DAC-V 65, DAC-M 65
Coupling test facility
Adapter: MK 50-45° SS x VK 50 SS
The lever is bent to enable lever arrest (safe position when coupled)
Hose Trolley for terminal operations (bunkering, cargo and refinery)
Hose Trolley HTR-T
Vehicle refuelling with LPG (L.P. Gas, Autogas)
GasGuard GG1 nozzle, Butapal hose
