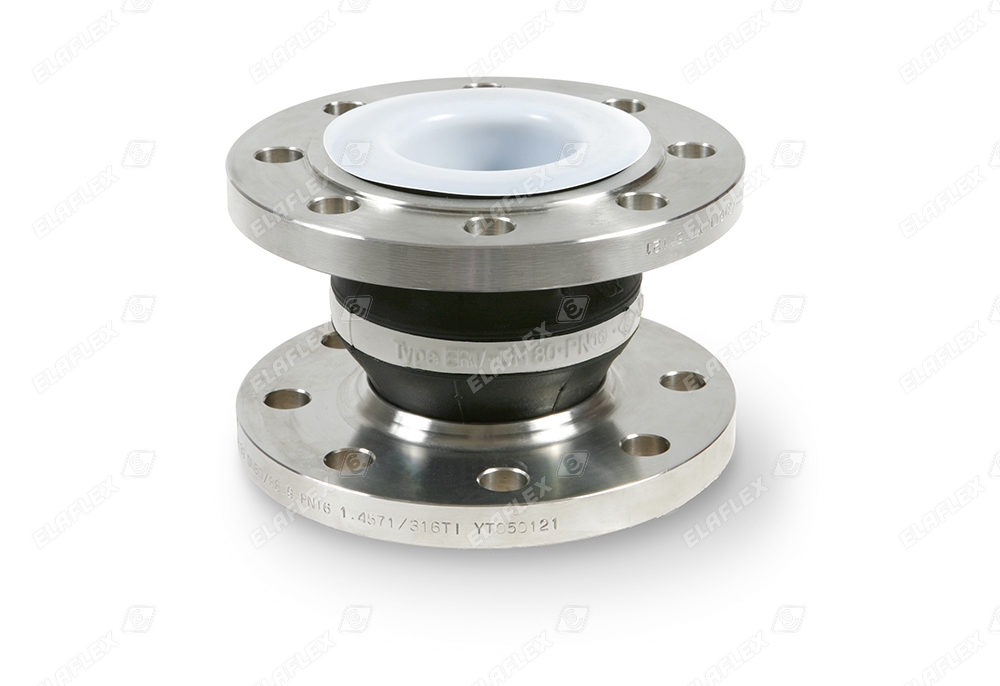

ERV-W 80.16 SS TA

White Band Rubber Expansion Joint with "TA" PTFE lining

Ship bunkering

FHD hose assembly, flange connection

Rubber Expansion Joint ERV-W 80.16

WHITE BAND expansion joints for foodstuffs, also containing oil and fat. Liner corresponds to Recommendation XXI of BfR and FDA-21CFR 177.2600. Not approved for drinking water. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically non-conductive.

MK 80-2" AG

TW female coupler, brass, with reduced male thread (special type)

SPANNFIX pinned safety clamps of aluminium

SX 75 Al

Elaflon Plus FEP

Quality is in the detail.

Chemical manifold

FEP 5O, MannTek DDC-M 5O SS

Cabinet of road tanker:

MK 80 with VB 80 ADR SS (plug with pressure relief)

ZVG 2 ACME / EURO / DISH

Nozzles for L.P. Gas (Autogas) refuelling

VB 80 ADR SS / VB 100 ADR Al with pressure relief

Plug for TW female couplers
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

Rubber Expansion Joint ERV-G 80.16

YELLOW BAND expansion joints suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

NB-ZVF 50 SR, ER 583 PTL

Nozzle boot f. ZVF 50 with additional spout retainer

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

Elaflex product configurators

for quick and easy product choice / RFQ

Offset UST filling point, LTW hose assemblies with TW couplings

Operator

SFC 50.16

hose flange; hose tail and swiveling flange of steel, Spannloc clams

DCC Dry Cryogenic Coupling for LNG

Coupling process

HD 50 reel hose for petroleum based products, VC 50-2" Spannloc clamped male coupling

ZVA Slimline 2, dispenser

Estonia

MannTek Dry Disconnect Couplings:

DDC-M 80-3" SS with PolypalClean hose assembly, DDC-V 80-3" SS with pipe end

Bunker boat: HD hose assemblies on reel, ZV 500 nozzle

ZVA Slimline 2, guard no. 4, Sight Glass SG 1 Al, Slimline hose assembly

ZVA Slimline 2, guard no. 1, black scuffguard, blue product sleeve, SL 16 hose assembly with blue Colour Sleeve

IBC loading

Elaflon Plus FEP hose assembly

Slimline dispensing hose SF (sulfur-free)

Fuel producers spend considerable effort in fulfilling the maximum allowed sulfur content. Rubber compounds of this hose type are free of sulphur – ensures that the sulphur content of the fuel is not increased, even if the medium remains for a long time within the hose

RD 50 seal, NBR blue

for foodstuff threaded couplings

PSB Pump Safety Break for High Hose Dispensers

Picture shows separation of the Slimline hose assembly after a drive-off accident

Transporter and school bus refuelling with LPG (L.P. Gas, Autogas, Propane)

GasGuard ACME nozzle

Heating oil delivery: ZV 500 nozzle, HD reel hose - up to 80 mtr length

M 16-1" NR cr

Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, yellow.
