Media Library / Images
In order to send you the picture material you need, please click some examples – after receipt of your E-Mail we will personally contact you to hear your exact requirements.
Category
- All
- Products
- Applications
- Company
Applications
- All
- Petrol Station Equipment
- AdBlue® Refilling
- Tank Truck Equipment
- Alternative Fuels
- Chemicals
- LPG / DME
- Pharmaceuticals
- CNG / NGV
- Aircraft Refuelling Equipment
- LNG
- Rail Tankers
- H2 Hydrogen
- Ships & Marina
- LH2 Hydrogen
- Rubber Expansion Joints
- Hose Reels
Sales Division
- All
- SAT(Hoses and Fittings)
- EHT(Petrol Pump Nozzles and Accessories / Hoses)
- ERV(Rubber Expansion Joints)
Sorting
- Newest on top
- Alphabetical
Filter by keyword
ZVF 50 JET overwing refuelling
with HD-C hose assembly

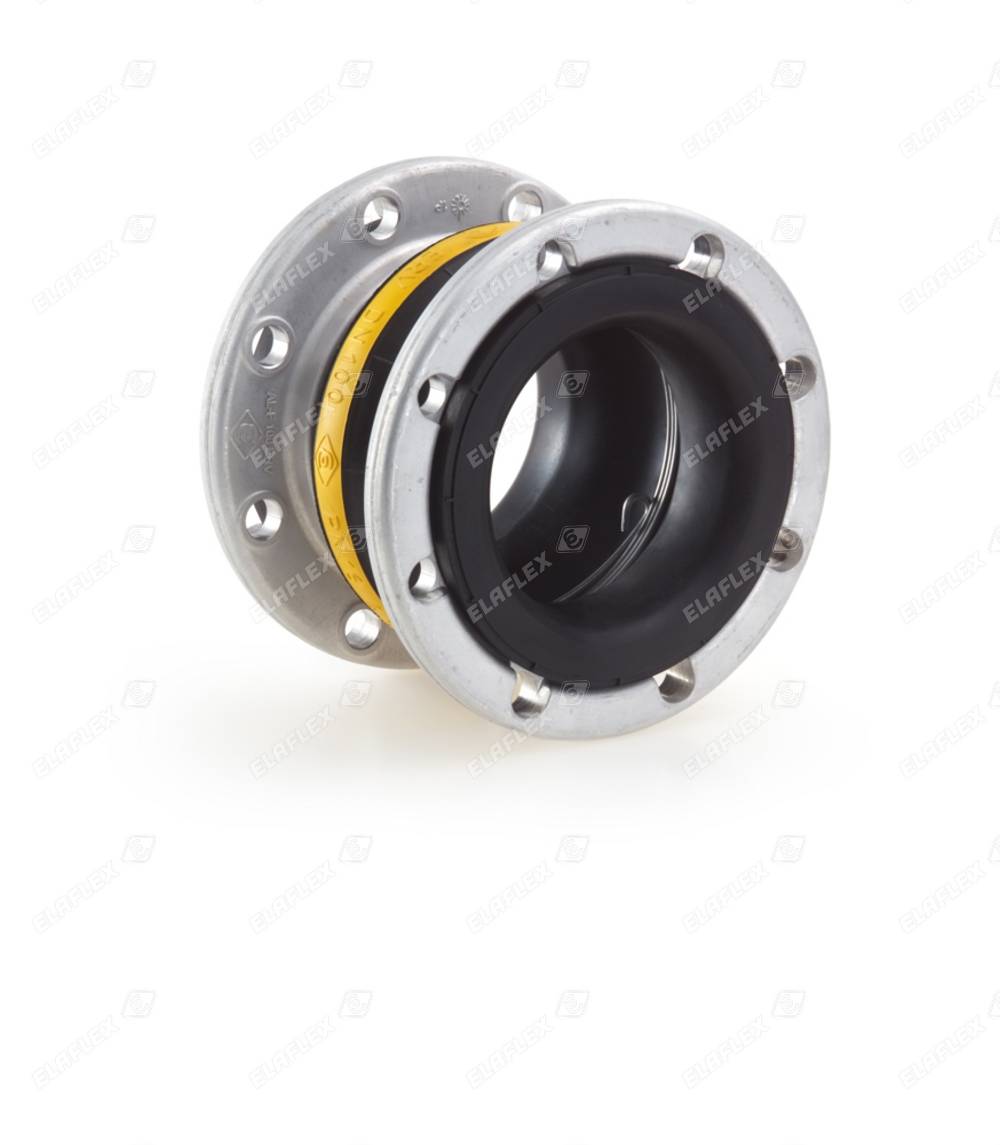

ERV-G AF
Suitable for piping systems of aviation refuelling or dispensing vehicles in accordance to EN ISO 1825/EI 1529. Suitable for all aviation fuels.
VKC 75 SS
TW male hose coupling, stainless steel, one part, with Spannfix clamps, with protecting "K"-Ring
ERV-R
"Red Band" Rubber Expansion Joints/ water treatment
Road tanker with hose reel -
Quick change system between ZV 500 and ZVA 32 nozzles via DDC Dry Disconnect Coupling
ZVA Slimline 2, SSB 16, Slimline 16 hose assemblies
Maroc
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose
ZVF 50 JET overwing refuelling
with HD-C hose assembly
LNG Refuelling
Align N-LNG Nozzle
GasGuard LPG nozzle GG30
LPGas nozzle with Bayonet connection according to EN 12806 - 2003 for the filling of commercial and passenger Autogas vehicles as well as mobile and small stationary storage tanks with propane and butane. New : 4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.
ERV-R 80.16 SS TA
Red Band Rubber Expansion Joint with "TA" PTFE lining
ELAFLEX quality: section view of a ERV bellows
ERV-OR "Orange Band"
CSB 21 Coax Safety Break: Separation
ZVA Slimline 2 GR, CSB 21, SL 21 Coax
petrol station Dubai - Vapour Recovery
Hose assemblies
for petroleum based products, chemicals, foodstuff and pharmaceuticals, LPG
ERV-R 200x175.16 ZS 4
Red Band Rubber Expansion Joint, special length 175 mm, with "ZS" limiter (tie rods with outer limitation in rubber bushings)
ERV-G Yellow Band rubber expansion joints, pumping system for oil emulsion
Production plastic parts
Injection Molding
Boat refuelling, ZVA 25
Latvia
ELAPHARM Type EPH
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
Slimline 19 black
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
MannTek DGC DryGasCouplings
with integrated SBC Safety Breakaway Coupling
HD-C, airport depot
Underwing couplings with HD-C hoses for bottom loading of aircraft refuellers at airport depot
ERV-G Yellow Band rubber expansion joint, wind turbine (hydraulic oil)
ELAPHARM hose assemblies, applications
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure 10 bar (140 psi). Temperature range -40° C up to +55° C
Graphic, components of a ZVA Slimline 2 GR nozzle for vapour recovery
TSVC 100 hose connectors
Fittings to conect two hose assemblies - available in many sizes, with Spannloc or Spannfix clamps
Assembling "ZS" tie rods to ERV rubber expansion joints
AN Rd 78 SS
Welding nipple with foodstuff thread, stainless steel
