ELAFLEX Hamburg

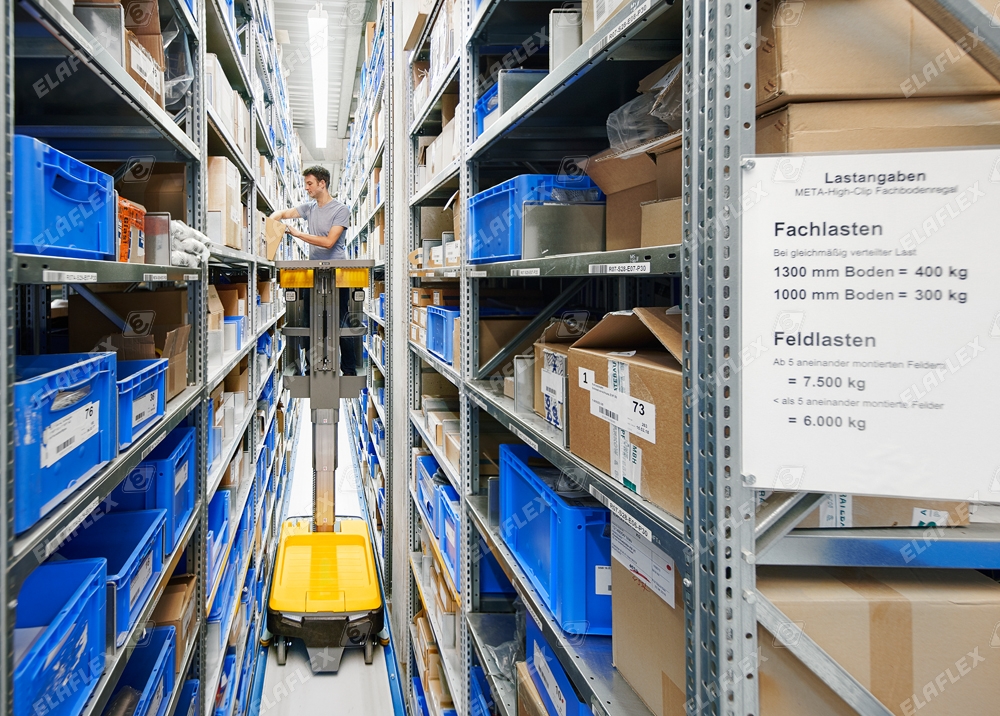

ELAFLEX stock hoses
DAC-V 65
Aircraft refueller, Dry Aircraft Coupling to ISO 45 for bottom loading
Safety Swivel Break
SSB 25
Yellow Band hoses from Elaflex
Setting the standard for refuelling hoses

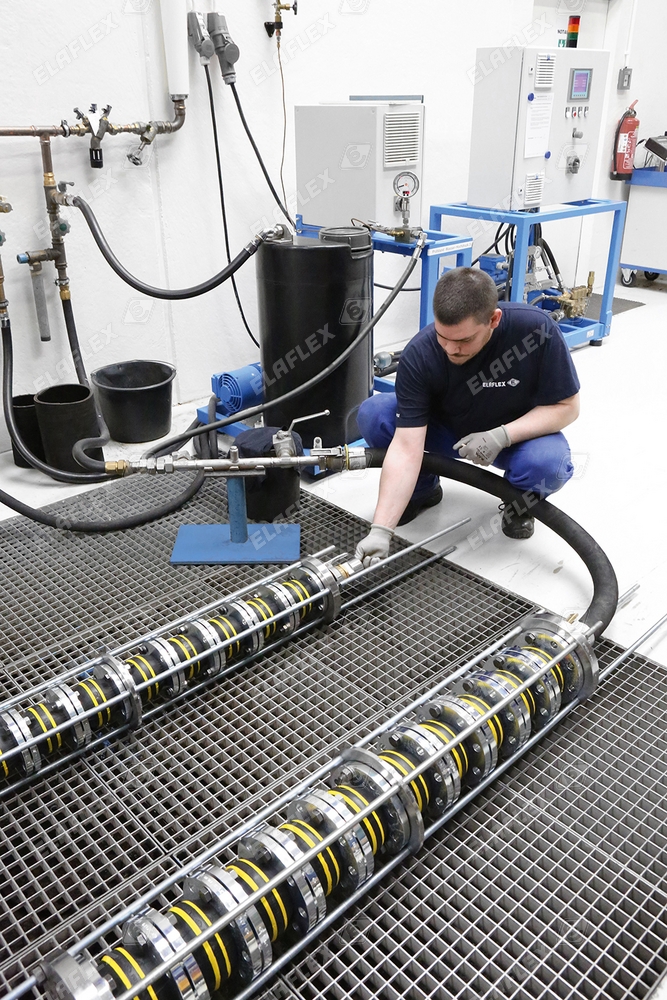

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Assembling ZVA
Universal hose assembly UTL 63 with VC 63-3" SS / SS and MK-A 80 SS
V 16-3/4"
Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, red.
Overwing refuelling ZVA 25
HD-C hose assembly
HD 100 C, HD 10 sensing hose
Aircraft Dispenser with DN 100 hose (spiralised marking) and a sensor hose to control the hydrant system.
Hose assembly TW 63 with SFX 63
TW hose with helix, 'TW' flange with hose tail and Spannfix clamps of aluminium
ZVA Slimline 2 GR
blue scuffguard, blue produc sleeve, guard no. 4
ELAPHARM Type EPH 25
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
ZVF 50 JET
with HD-C NEON hose assembly
Rail tanker discharge coupling KWK, with elbow DN 80
for damaged / dirty rail tanker or other threaded hose connections. Used e.g. for environmental protection trucks
Hose Reel with HD 38, ZVA 25, Bonding Reel red
Mobile Cabinet, airfield refuelling
Terminal, TW hose assemblies and DDC Dry Disconnect Couplings
DN 2" Ms
Double nipple brass
Elaflon Plus FEP 25
Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.
ZVA Slimline 2 / ZVA Slimline 2 GR
Petrol station nozzles with (top) and without vapour recovery (below)
ERV-R 80.16 ZS 2
Red Band Rubber Expansion Joint with "ZS" limiter (tie rods with outer limitation in rubber bushings)
Hose Trolley for terminal operations (bunkering, cargo and refinery)
Hose Trolley HTR-T
Manufacturing of turned parts
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, blue.
IBC
with CHS chemical hose assembly
TWD coupling seal
Hose Reels group picture
Movable, pneumatic rewind system, active Vapour Recovery (VR) for gasoline fuels
VB 50 P, VB 80 P
TW dust plugs of Polyamide
Manufacturing warm forged parts
Example SC 150 Spannloc clamp
ERV with FSH:
Flame protection cover (open)
