AdBlue® urea solution, road tanker:
DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel
ERV-G 150.TW, ERV-G 80.TW
Aircraft refueller
Fluorflex FXD universal hose assemblies
with inner corrugation for maximal flexibility. Picture 1
LBS 50 hose assembly for foodstuffs, FDA conform
with RMC 50 SS/SS (DIN 11851 foodstuff threaded coupling and Spannloc clamps of stainless steel)
ELAFLEX Hamburg
Manufacturing bronze corrugated pipes
ERV-GS
"Yellow Steel" Rubber Expansion Joints / ship engine room
HD 50 C, Carter Underwing Nozzle, Aljac Lanyard Reel
Slimline 16 red
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
M 21-1" cr
Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, red.
ZVA Slimline 2
with blue product sleeve and guard no. 3
Fuel grade identification for ZVA to standard
Attach with EK 145 Product Badge
Slimline 21 black
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.
ZVA 25 spout with stainless steel tip
MB 50 SS
Dust cap for VK 50, stainless steel
Slimline quality dispensing hose for the forecourt
V 19-3/4" NPT
Male ferrule hose coupling EN 14424 stainless steel, reusable. Slimline 19 SF (sulphur free) hose, black.

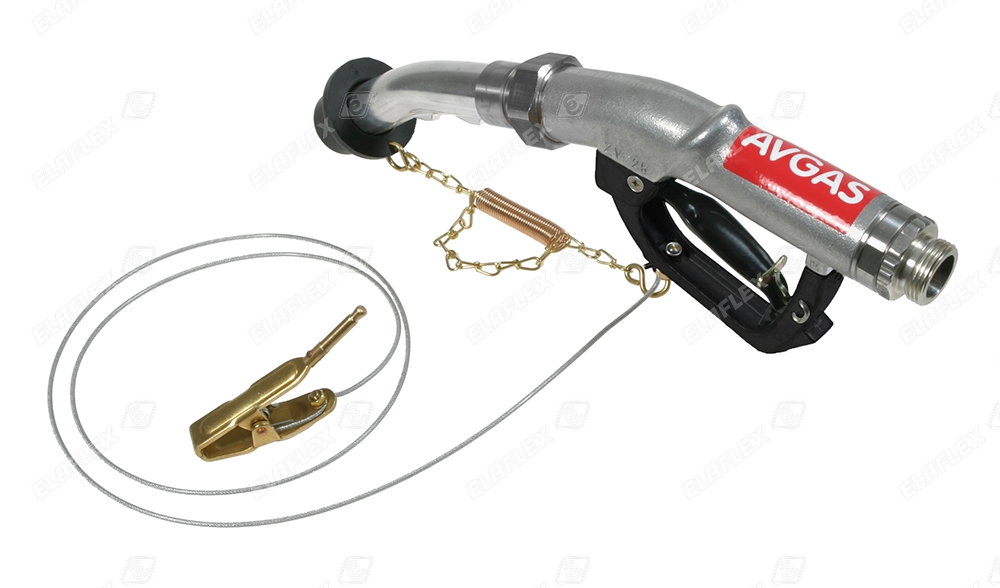

ZVF 50 UL 91 / green
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
DDC-M 100, HD-C, airport depot
Dry Disconnect Coupling, Yellow Band hose, at airport depot
Elaflex Pacific (Australia)
Construction
Tank container filling coupling: MK 80-32 SS with VB 80 SS
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

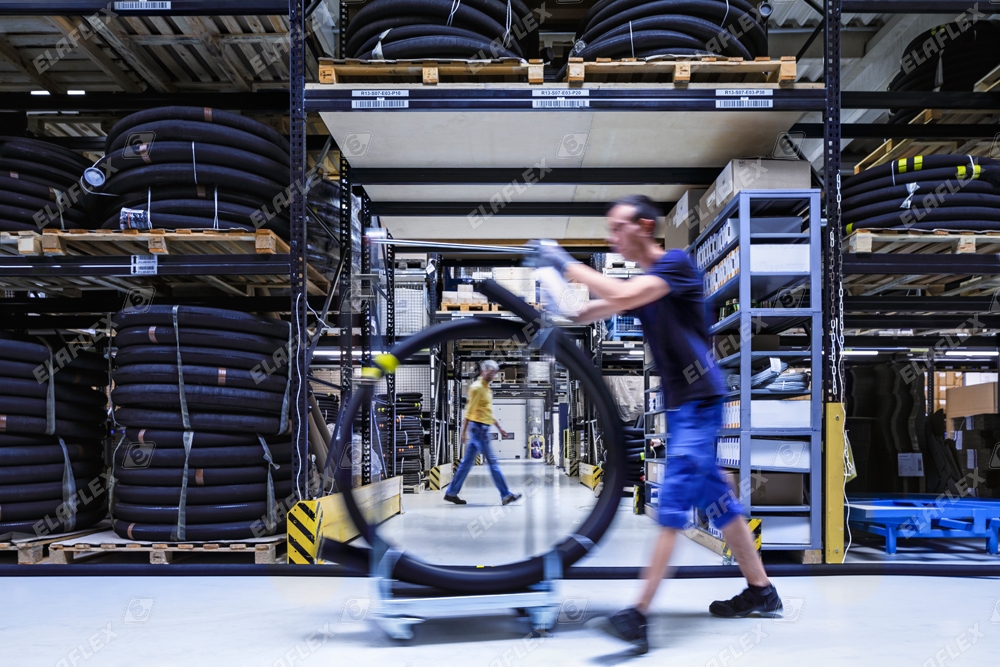

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Plettenberg factory 2
Rail car adapter type KWZ, one end with rail car thread 5½, other end 3" male BSP
Oasis FV103 Fill Valve with extension, CNG dispenser
ZVA_AdBlue_LV_2-Stufen-Anschlag_Step2_mod
Use - 2/2
Universal hose UTL 38
ELAFLEX Hamburg
Assembling ERV small DN
Underwing refuelling, HD-C hose assembly
Hydrant dispenser
ZVG 2 EURO UL nozzle for L.P. Gas / Autogas
with EA 866 scuffguard black and LPG 16 S hose assembly black
EN 12115 hoses: colour marking
Upstream Oil Industry, TW hose assemblies
Kuwait
