Ship sided connectors for bunkeringof fuel, lube oils, fresh water; unloading of sewage
DDC Dry Disconnect Couplings with caps
ELAPHARM Type EPH
electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).
Universal hose UTL 50
Coloured hose assemblies for the forecourt
Slimline 21, M 21-1" NR
Polypal Clean hose
ERV-BR 100.16
BR Rubber Expansion Joint, special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products. Also suitable for all kinds of water (non oil containing) as well as various chemicals. Not suitable for petroleum based products. For extreme strain (e. g. sharp and rough-edged matter) we suggest the use of ERV with inner protection sleeve type SR.
ERV-GR ... ZS

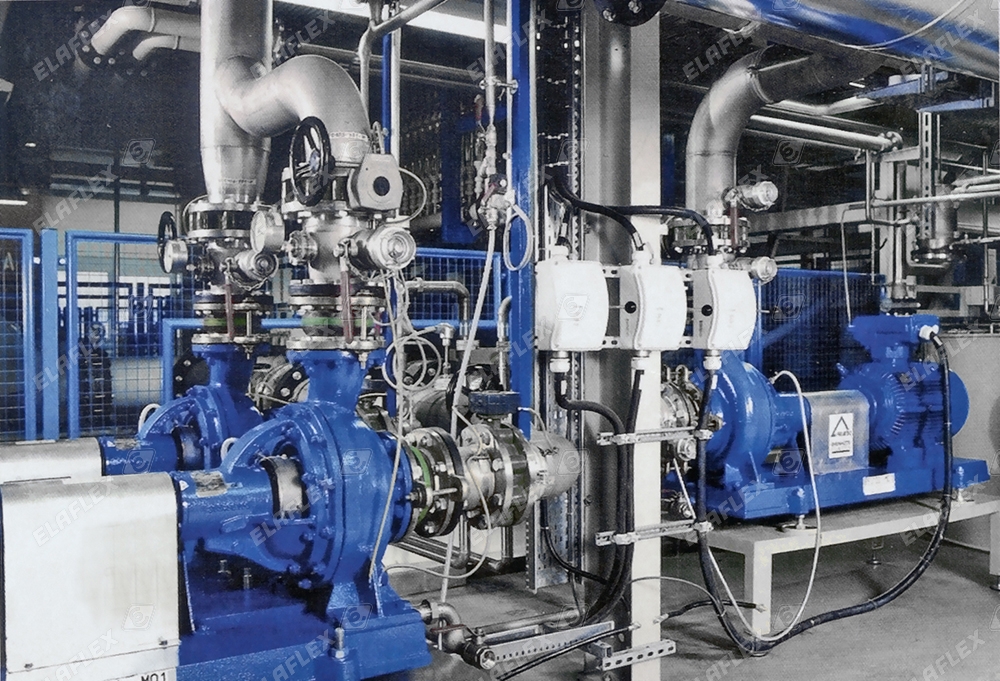

"Green Band" Rubber Expansion Joints with limiters in chemical pumping system
Hose assemblies for the chemical industry
ERV-GR TA, UTL with DDC, FXD with male thread, Elaflon Plus FEP with foodstuff fitting, Elaflon PTFE with female thrad
Oasis FM104 Fuel Manifold on Natural Gas powered vehicle

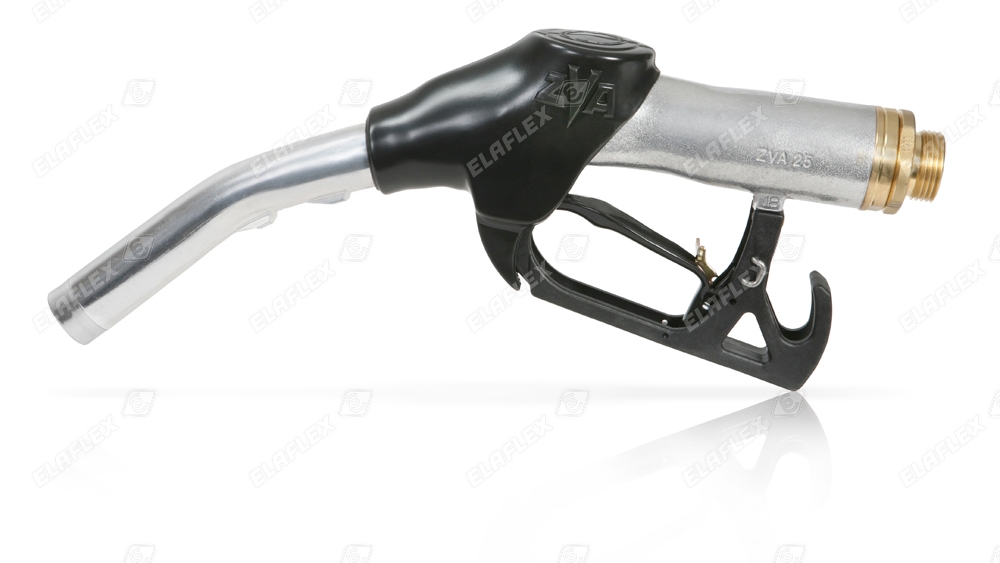

ZVA Slimline 2, black, guard 3 - side view B
TW hose assembly, airport depot
Heating oil delivery: ZV 500 nozzle, HD hose
ELAFLEX Hamburg
Coax hose assembling
Road tanker with hose reel -
Quick change system between ZV 500 and ZVA 32 nozzles via DDC Dry Disconnect Coupling
Cabinet of road tanker:
hose tubes, TW hoses, TW couplings
Hose Reel with hydraulic rewind system blue, TW 100, DDC-M 100
Alternative fuels: DME Dimethyl Ester
DGC Dry Gas Coupling, EFL 16 Fluorline hose assembly
Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling
Locomotive refuelling
DDC-V Dry Disconnect Coupling (filler inlet of the locomotive), DDC-K cap
Colour production: manifold
UTS and FWS hose assemblies
Saturated steam hose fitting SMS 19-3/4" SS/SS
completely of stainless steel, with self-securing bolts and nuts; possibility to attach stainless steel anti-kinking spirals KSS-SD
GasGuard nozzle GG 1 DN, hose assembly, nozzle boot NB-GG
ZVF 50 UL 91 / green
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
Marine bunkering and cargo hoses
ship to shore cargo transfer
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Manufacturing of turned parts
ZVA Slimline 2 GR with Sight Glass SG-COAX
ZVA Slimline 2 GR, black, guard 3 - top view
ELAFLEX Hamburg
Cutting area for dispensing hose
ELAPAC FD 174 flange seal
Elaflex Pacific (Australia)
Construction
