Media Library / Images

ZVG 2 ACME nozzle for L.P. Gas / Autogas

LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.

ELAPHARM hose assemblies, applications

Drum unloading; UTS 32 hose assembly

Cabinet of road tanker:

MK 80 with VB 80 ADR SS (plug with pressure relief)

Quick Tester GR 92

for the simple Yes / No functioning test of vapour recovery

SMC 50-2"

Female hose coupling of steel with Spannloc clamps

DDC-K ADR:

DDC Dust Caps with Pressure Relief Valve to ADR Requirements. These pressurized dust caps PN 10 of aluminium for DDC male adapters on road tankers are much lighter than the PN 25 versions of stainless steel.

VK 50 SS

TW male coupling stainless steel

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 EURO (UL listed)

SPANNFIX pinned Sicherheits Klemmbacken aus stainless steel

SX 75 SS

Unloading petroleum products at the service station (road tanker to UST)

LG 3" hose assembly for gravity discharge, LTW 50 hose assembly for vapour balance

MK 80-90 SS; MK coupling stainless steel with bent lever 90°

TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

MannTek DDC-V & DDC-M Dry Disconnect Couplings

ELAFLEX quality: section view of a ERV bellows

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

Elaflex nozzles, hose assemblies and Rubber Expansion Joints for petroleum based products

Double Closing COAX Safety Break

CSB 21 DC

MK 80-2" AG

TW female coupler, brass, with reduced male thread (special type)

M 21-1" cr

Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, yellow.

ZVA Slimline 2, guard no. 1, black scuffguard, blue product sleeve, SL 16 hose assembly with blue Colour Sleeve

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

SG 1" 1x0 Al

Sight Glass, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

MC 38-11/2" SS

Female hose coupling for hoses, stainless steel, with Spannloc clamps

ZVA-RG

Automatic nozzle ZVA DN 19, of red bronze (gunmetal), for solvents and corrosive media. Flowrate up to 60 l / min.

DEC – Dry Evotek Coupling

Dry disconnect coupling for the chemical industry

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed

Oasis 'Priority Panel' with ball valves for CNG bus refuelling

ERV-G ... TW

Aircraft refueller

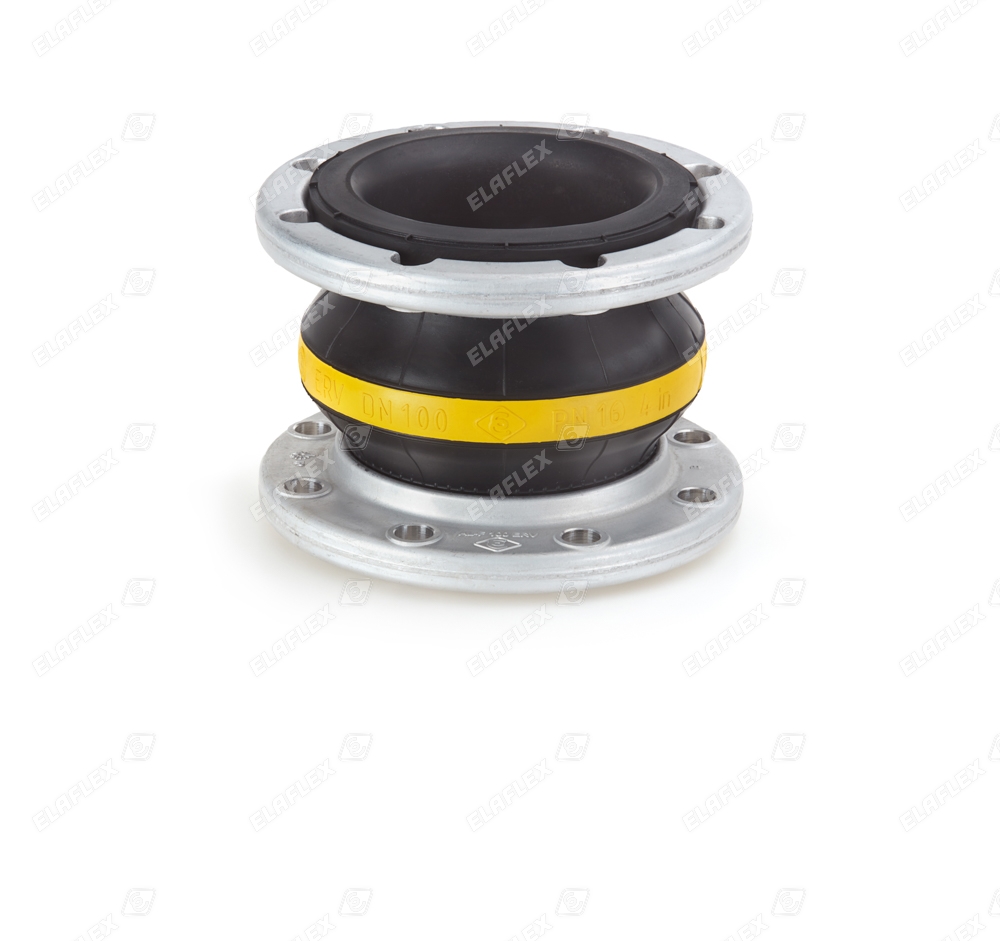

ERV-G 1000, ERV-BR 300
