ZVA Slimline 2 GR, black, guard 3 - top view
ZVA 25, Slimline hose assembly
Truck refuelling
MannTek Dry Disconnect Couplings:
DDC-M 80-3" SS with PolypalClean hose assembly, DDC-V 80-3" SS with pipe end
HB 19 ST tar spraying hose
Pressure hose for road construction machines, especially for hot bitumen and heavy heating oil. Temperature range: - 25° C up to + 220° C. Meets EN 13482, Type 2 SB/B (DN 19 and DN 32 analogue).
LMD 32 Blue Band solvent hose
without helix

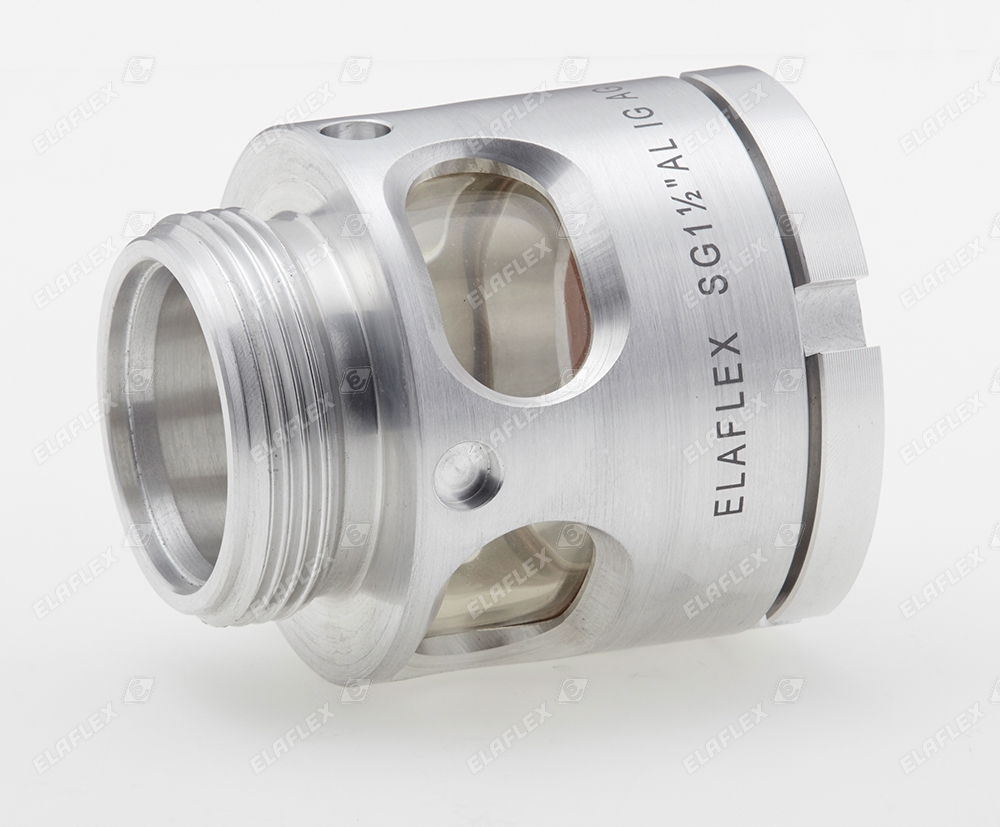

ZVA Slimline 2 with SG 1" Al Sight Glass
Nozzle boot NB-ZVF 50
for ZVF 50 Oberflügel-Zapfventile
Unloading chemical road tanker
Elaflon PTFE hose assembly, TW couplings
Stainless steel couplings with PFA coating, type "...SSE"
Surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
Hose assembly with MKX 75 SS and VB 80 SS
TW female coupler with Spannfix clamp, plug
Hot bitumen hose - loading (bunkering) ship
HB 100 hose assembly
SX 50 SS

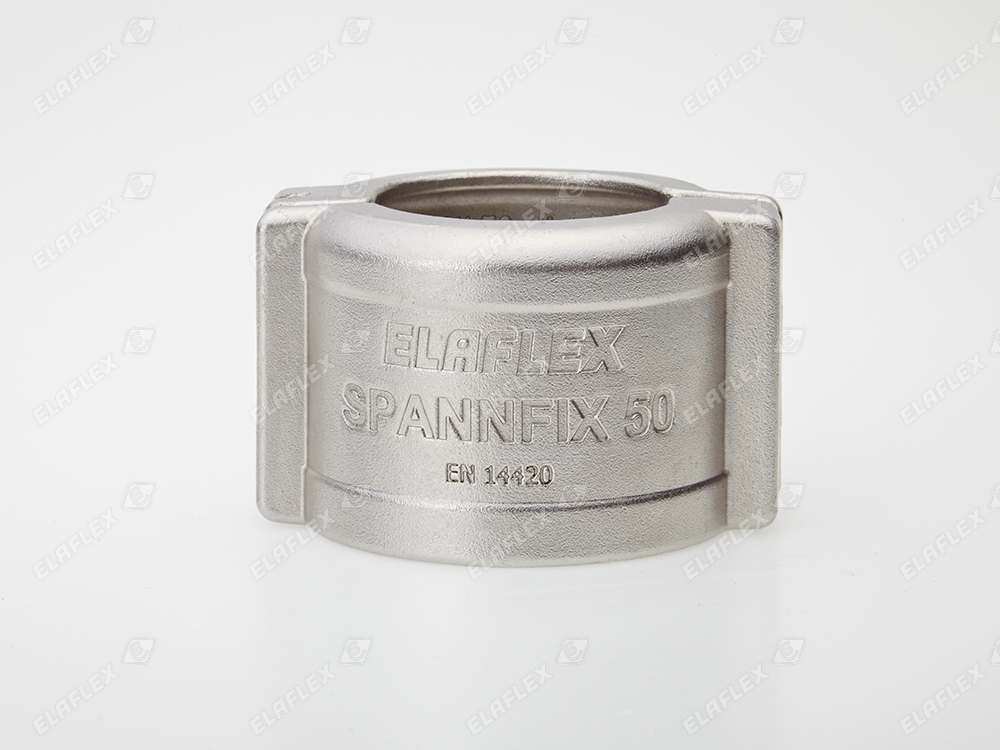

Spannfix clamp DN 50 of stainless steel
ERV-G ... TW

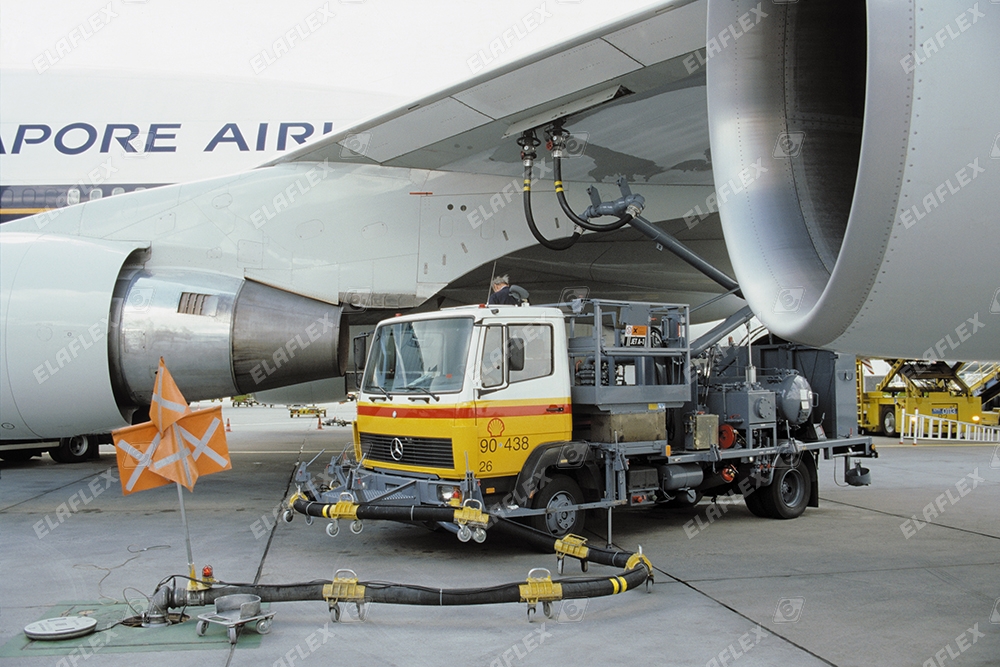

Aircraft refueller
H2 Hydrogen
H2 25 D Hydrogen hose
DAC-V 65, DAC-M 65
Coupling test facility
Fixed Flange and hose tail of stailess steel
FF 63.16 SS
ZVA Slimline 2 for aircraft refuelling
black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly
Oasis PM104 Priority Panel / Manifold, for CNG
HD-C, aircraft refueller
Tar (bitumen) spraying hose HB-ST in action
Offset UST filling point, LTW hose assemblies with TW couplings
Operator
VB 80 ADR SS with pressure relief
Plug for MK 80
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation
Flexible bronze pipe connector BWO
Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps
ELAFLEX Hamburg
Construction
Underwing refuelling, HD-C
Aircraft dispenser, pit
Oasis FV103 Fill Valve, CNG refuelling
V 16-1" cr
Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, black.
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Manufacturing nozzle seat
ZVF 50 JET
Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.
MB 80 SSE
TW dust cap of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
