Premium refuelling equipment from ELAFLEX

ZVA Slimline 2

Automatic nozzle DN 19, for flowrate max. 80 l / min. Green Product Sleeve and Scuffguard, Slimline dispensing hose assembly

Vehicle refuelling with LPG (L.P. Gas, Autogas)

GasGuard GG20 ACME nozzle

Hose assemblies and Rubber Expansion Joints for the chemical industry

ERV-GR TA, UTL with DDC, FXD with male thread, Elaflon Plus FEP with foodstuff fitting, Elaflon PTFE with female thrad

Oasis Engineering Ltd, New Zealand (CNG refuelling products)

Testing

Adapters / couplers for vehicles fighting dangerous goods incidents:

Adapter for Rail Tanker 51/2" connection KWZ SS/Vi x VK 50 SS/Vi

Adapter: MK 50-45° SS x VK 50 SS

The lever is bent to enable lever arrest (safe position when coupled)

Slimline 21 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

KR 50 - 21/2"

Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors

Locomotive refuelling

Dispenser, ZV 32 DB nozzles with Renk coupling

Accessories and spare parts: Ground cable assembly, dust cap assemblies, spouts, strainer

ER 339, ER 494, ER 495, ER 587 JET PTL, EKG 1200, GKG 19, GKG 32, GKG 38-J, ES336.1

GasGuard LPG nozzle GG1DN

suited for use by the general public and untrained personell (self service). Patented dual nose piece for added safety. Low lever actuation force. Gas release volume on valve closure: 1.7 cm³.

MK 80 Ms, Sight Glass with Rods

HB hot bitumen hose - loading road tanker

ERV-G 150.TW, ERV-G 80.TW

Aircraft refueller

Solvent filling with integrated vapour recovery in the nozzle

ZVA 25 GR, UTS hose assemblies

MannTek, DEC-M 38, DCC-M 50, DGC-M 80, DDC-M 50, DDC-M 80, DAC-M 65, DAC-V 65

Swivels DG of stainless steel

Swivels serve to avoid hose torsion (increase of life span) and help for easier handling

DDC-K 2 1/2" PE

Dust cap for DDC-V Dry Disconnect Couplings;
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

VX 38-11/2" SS

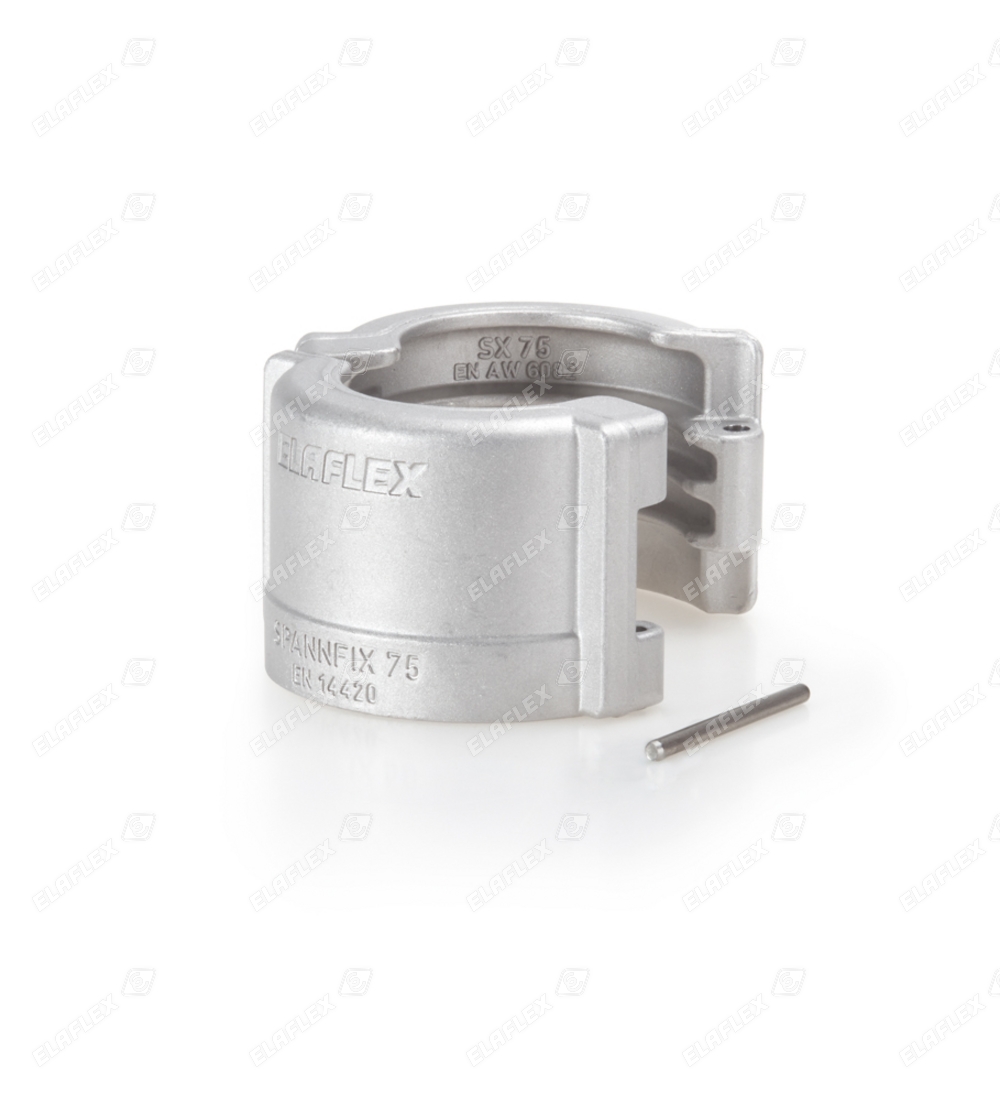

Spannfix male hose coupling, stainless steel

DDC-V 25 Al; DDC-K 25

Dry Disconnect Coupling as probe/sampling unit connection at aircraft refueller

ERV-G 80.TW

Yellow Band rubber expansion joint with TW flanges

ERV-R 100.16

RED BAND Rubber Expansion Joint for water, drinking water (DVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature range - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

ELAFLEX Hamburg

Assembling ERV large DN

Filling of Heating Oil Tanks: Adapter KR 50-2 3/4" (Switzerland)

for difficult to reach filler inlets

EA 866 scuffguard orange with ZVG 2 ACME nozzle

The scuffguard for LPG / Autogas nozzles shows the LPG fuel grade marking required by standard, and offers a large advertising space

ELAFLEX quality: section view of a ERV bellows

ERV-OR "Orange Band"

Oasis FV103 45° Fill Valve with NC 104 Nozzle, for CNG

HD-C aircraft refuelling hose

VHD 63 C NEON

Oasis Bus & Truck Fill Valves at CNG station
