Connection road tanker to trailer: LTW hose assembly, DDC Dry Disconnect Coupling
Vehicle refuelling with LPG (L.P. Gas, Autogas)
ZVG 2 EURO
AdBlue® urea solution, road tanker:
DDC-M 50 Dry Disconnect Coupling, UTL 50 hose assembly on reel
Rubber Expansion Joint ERV-GS 80.16
YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.
ZVG 2 ACME nozzle for L.P. Gas / Autogas
pulling lever and latching, possible with one hand

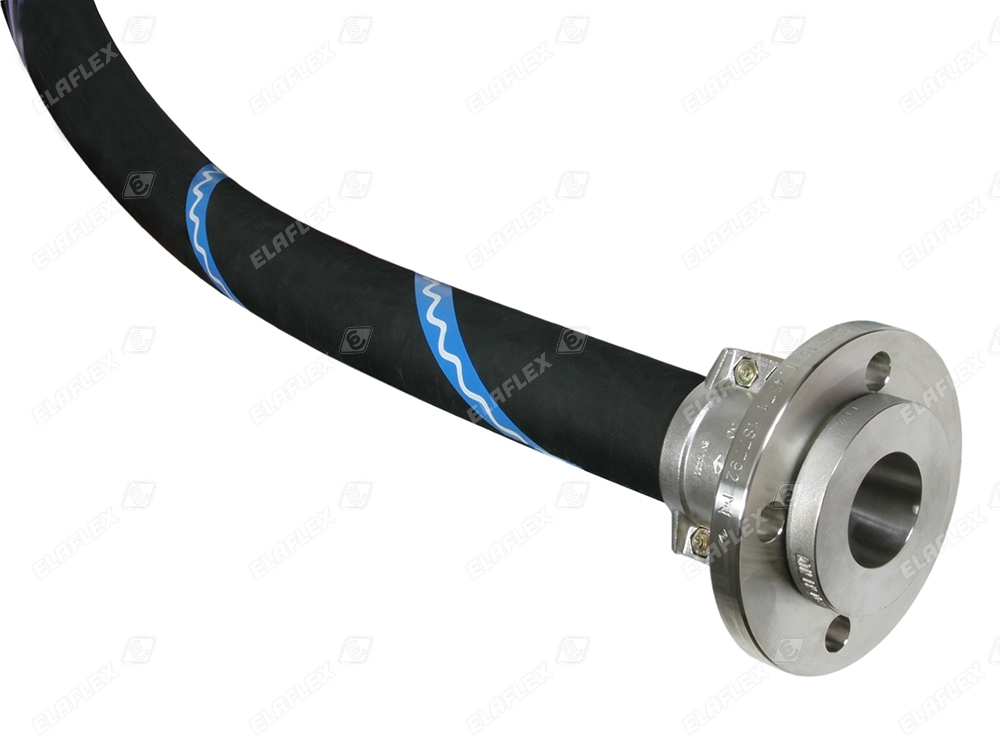

LMS 50 Blue Band solvent hose with helix
Coupling: RMC 50 SS / SS, foodstuff thread, Spannloc clamps of stainless steel
V 16-1" cr
Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, blue.
Hose assemblies for petroleum based products
Yellow Band quality with nozzle, TW coupling, flange connection
Refuelling equipment for petroleum based products:
Elaflex "Yellow Band" Hose assemblies, ERV Rubber Expansion Joints
ZVA 25, Slimline hose assembly
Truck refuelling
CSB 21 Coax Safety Break: Separation
ELAFIX 40 Anti-Siphon
Magnet adapter for installation in filler necks from DN 40. This adapter allows the refilling of urea solution with ZVA HV for AdBlue®, without the risk of misfillings. Meets ISO 22241-4. – Version with anti-theft protection –
Oasis FV103 with NC203 P36, Light Duty Fill Valve and Transit Nozzle for CNG
GasGuard LPG nozzle GG1E
eoconomic type for industrial refueling / attended refueling. Release volume on valve closure: 1,9 cm³.
HD 100 C, hydrant hose
Aircraft dispenser, pit
ZVG 2 K (Korea)
uncoupling from J 15 filler connection
Oasis SV Sandwich Valves 100series, for CNG
Unloading Methanol
with FWS composite hose, DDC Dry Disconnect Coupling
Aircraft refuelling hose with reflecting stripes, Hose Beads 'BD' which notably improve the handling as they reduce friction against the tarmac, next generation overwing nozzle ZVF 50
DAC-V 65, DAC-M 65
Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - in action
L.P. Gas rail tanker
loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange
Hose Assemblies with Flange - Elapac seals
On board of an aircraft refueller: TW-hose, Spannloc flanged coupling; flange seal: Elapac.
Anti-Kinking Spirals 'KSS' and 'KSS-SD'
The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
ZVA long term testing
Ship bunkering with LNG
towards the end of the bunkering process
ERV VSRV:
ERV with bolted vacuum support ring. For maximal vacuum resistance of the selected ERV. Bolted ring in stainless steel AISI 316 Ti.
COAX Safety Break
CSB 21
Hot stamping process, production TW coupling parts
Sight Glasses for petrol station nozzles
SG 1" Al, SG-COAX, special types with Propeller
AMKC 50 Ms
'Camlock' brass steel coupler to EN 14420 - 7 with hose tail and Spannloc clamps
