LPG terminal: loading with DGC Dry Gas Couplings

Unloading chemical road tanker

UTS hose assembly

Anti-Kinking Spirals 'KSS' and 'KSS-SD'

The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings

Oasis ball valves for CNG in winter

Cargo loading of ship - various media

FWS composite hoses

Production MannTek, Sweden

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Machining spouts

DDC-M 80-3" Ms

MannTek Dry Disconnect Coupling, DN 80, gunmetal

SG 1" 1x0 Al

Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.

Camlock cam locking couplings:

Attachment AMB dust cap with chain to Spannfix clamps (service free of charge)

VB 80 Al

TW dust plug, aluminium

Refuelling ZVA Slimline 2 GR (Gasoline)

with Slimline hose assembly

ZVA Slimline 2 nozzles special version, Slimline dispensing hoses blue / red

Thailand

ZVA Slimline 2

with blue product sleeve and guard no. 3

VX 63 2½" SS NR Al

Hose coupling with male thread, Spannloc aus Aluminium

GasGuard LPG nozzle GG30

4-slot design to facilitate connection of the nozzle to the vehicle fill point. New nose piece design to reduce the released gas upon valve closure, incorporating improved gas release method to minimise the risk of splash back.

Bunker boat: HD hose assemblies on reel, ZV 500 nozzle

ZVA Slimline 2, black - bottom view

MannTek DGC DryGasCouplings

with integrated SBC Safety Breakaway Coupling

Unloading petroleum products at the service station (road tanker to UST)

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

ContiTech Production ERV

Calender - preparation of rubber batch

Slimline 19 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

Polypal Plus 50 universal hose

with SFC 50 SS / SS hose flange (hose tail, swiveling flange and Spannloc clamps of stainless steel)

RS 2 x 3 SS

Reducer Female/Male

VK 80 - 2" IG Ms

TW male coupling brass, with reduced female BSP connection, one piece adapter (special type)

ZVA Slimline 2, guard no. 8D, black scuffguard, red product sleeve, SL 16 hose assembly with red colour sleeve

Hose assembly for petrol stations

COAX hose SL 21, with inner vapour hose, for vapour recovery Stage II

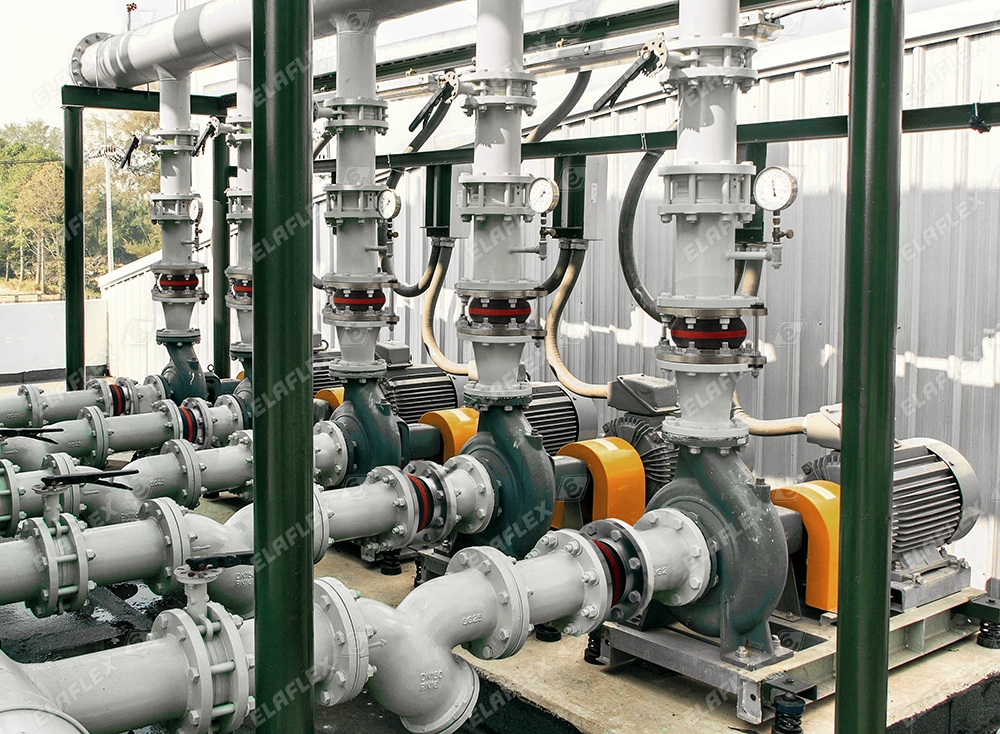

Rubber Expansion Joint ERV-GS HNBR 80.16

YELLOW STEEL HNBR expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Very good aging, weathering and ozone resistance. Temperature range (depending on medium) - 35° C up to + 100° C, temporarily up to + 120° C. Fire resistant to ISO 15540 up 30 min. at + 800° C. Electrically dissipative.

Refuelling equipment for petroleum based products:

Elaflex "Yellow Band" Hose assemblies, ERV Rubber Expansion Joints

Lube oil filling, ZV 19 manual nozzle
