CSB 21 Coax Safety Break: Separation
LNG Refuelling
N-LNG Nozzle, opening locking mechanism

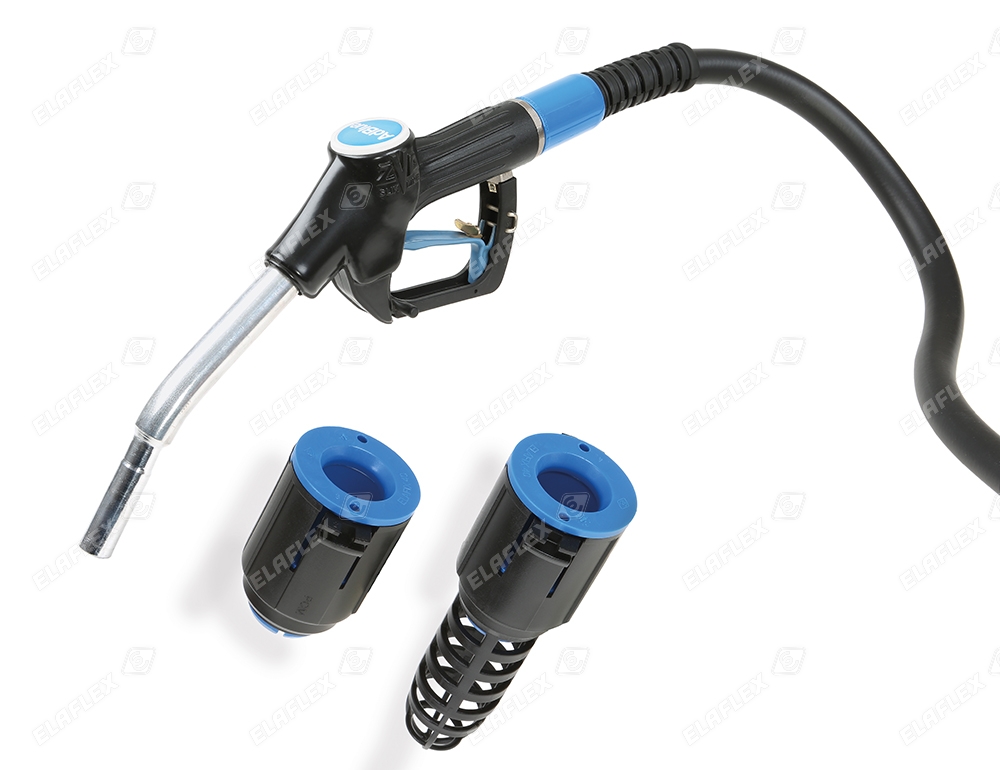

ZVA 25, Slimline hose assembly
Truck refuelling
Adapter: MK 50-45° SS x VK 50 SS
The lever is bent to enable lever arrest (safe position when coupled)
L.P. Gas road tanker: long hose reel, LPG 32 and LPG 25 hose assemblies
Connection DDC-M 100 with HD hose assembly to tanker
Ship bunkering from the road tanker
Oval flange seal FD 650-3 of ELAPAC 3 mm
Customer protected special design ZVA Slimline 2 & ZVA Slimline 2 GR nozzles
ZVG 2 ACME nozzle for L.P. Gas / Autogas
pulling lever and latching, possible with one hand
ERV VSR:
ERV with vacuum support ring. Ring of AISI 316 Ti , used when the vacuum resistance of the chosen ERV is not sufficient.
M 21-1" cr
Female ferrule hose coupling EN 14424, reuasable. Slimline 21 hose, green.
Camlock cam locking couplings:
Attachment AMB dust cap with chain to Spannfix clamps (service free of charge)
Unloading chemical road tanker, Methanol
UTS hose assembly
coupled PTFE hose assemblies, MK 50 SS, Adapter VK 50 SS x VK 50 SS, Spannloc stainless steel clamps
Rail tanker unloading of petroleum based products
FWS PP St/St composite hose, MannTek Dry Disconnect Couplings
DDC-K ADR:
DDC Dust Caps with Pressure Relief Valve to ADR Requirements. These pressurized dust caps PN 10 of aluminium for DDC male adapters on road tankers are much lighter than the PN 25 versions of stainless steel.

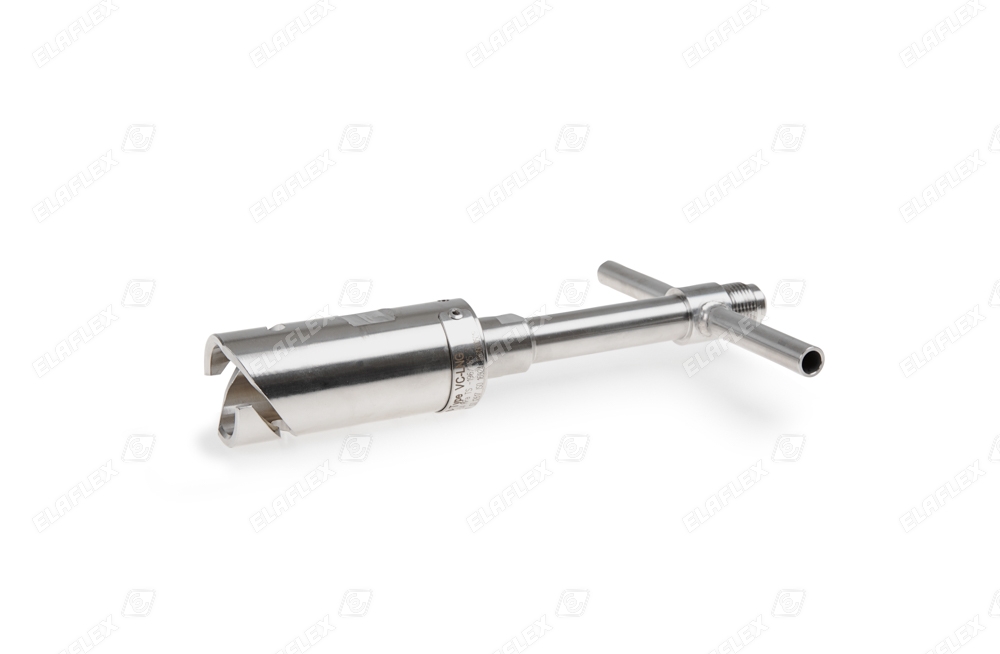

Assembling Spannloc hose fittings

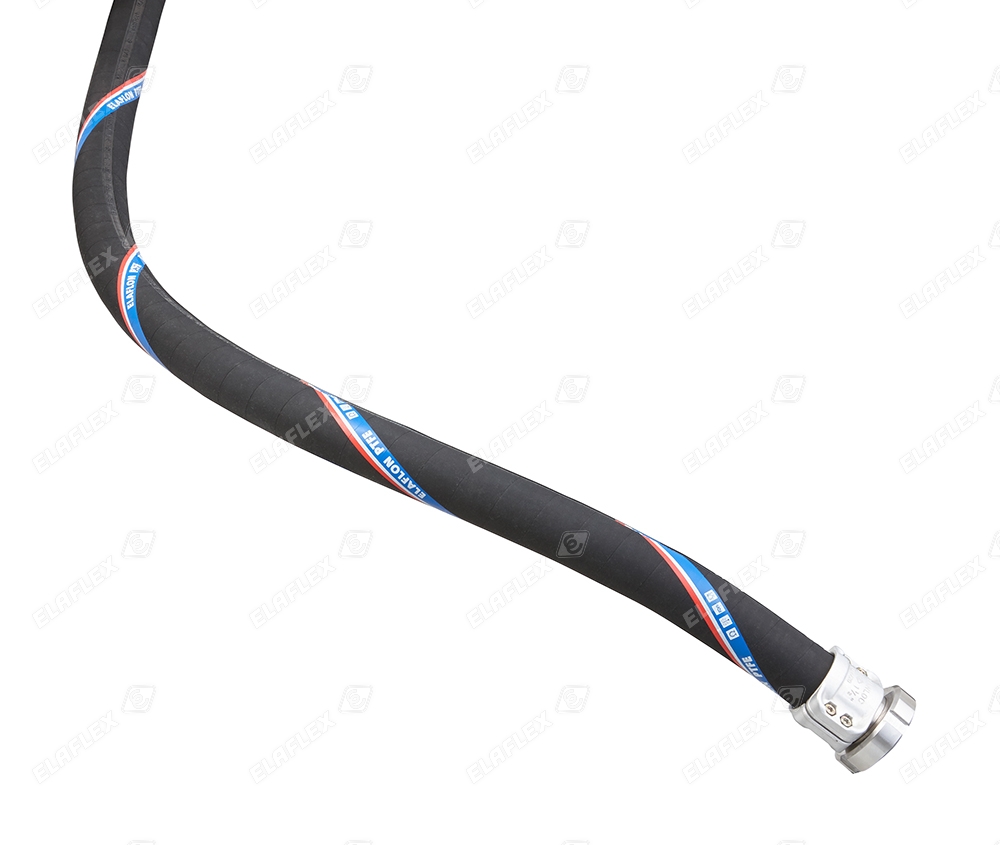

Elaflon Plus FEP 25
Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.
Hoses for Liquefied Petroleum Gas / Autogas
LPG 13, LPG 16 black/orange, LPG 19
LeverAssist hold-open aid for ZVA Slimline 2 nozzles
Detail
ZVA Slimline 2, dispenser
Estonia
ZVA Slimline 2, black - bottom view
Elapharm EPH 25 OHM-G
ELAPHARM OHM G electrically conductive 'Ω / T', light grey cover. Corresponds to DIN 26055-3 / EN 16820, Type A. FDA conform. Homogeneous elastomer hose construction with smooth, black Teflon® PTFE liner.
Large reel, HD hose assembly, ZH 50 nozzle
ZVA Slimline 2 for aircraft refuelling
black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly
Boat refuelling, ZVA 25
Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies
ZV 500 for chemials
Bulk filling of Methylene Chloride
AMKI 50 SS, AVKI 50 SS
'Camlock' stainless steel female and male coupling to EN 14420 - 7
Slimline 21 blue
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.
